Case Study 006  ·  Underbody & Arches

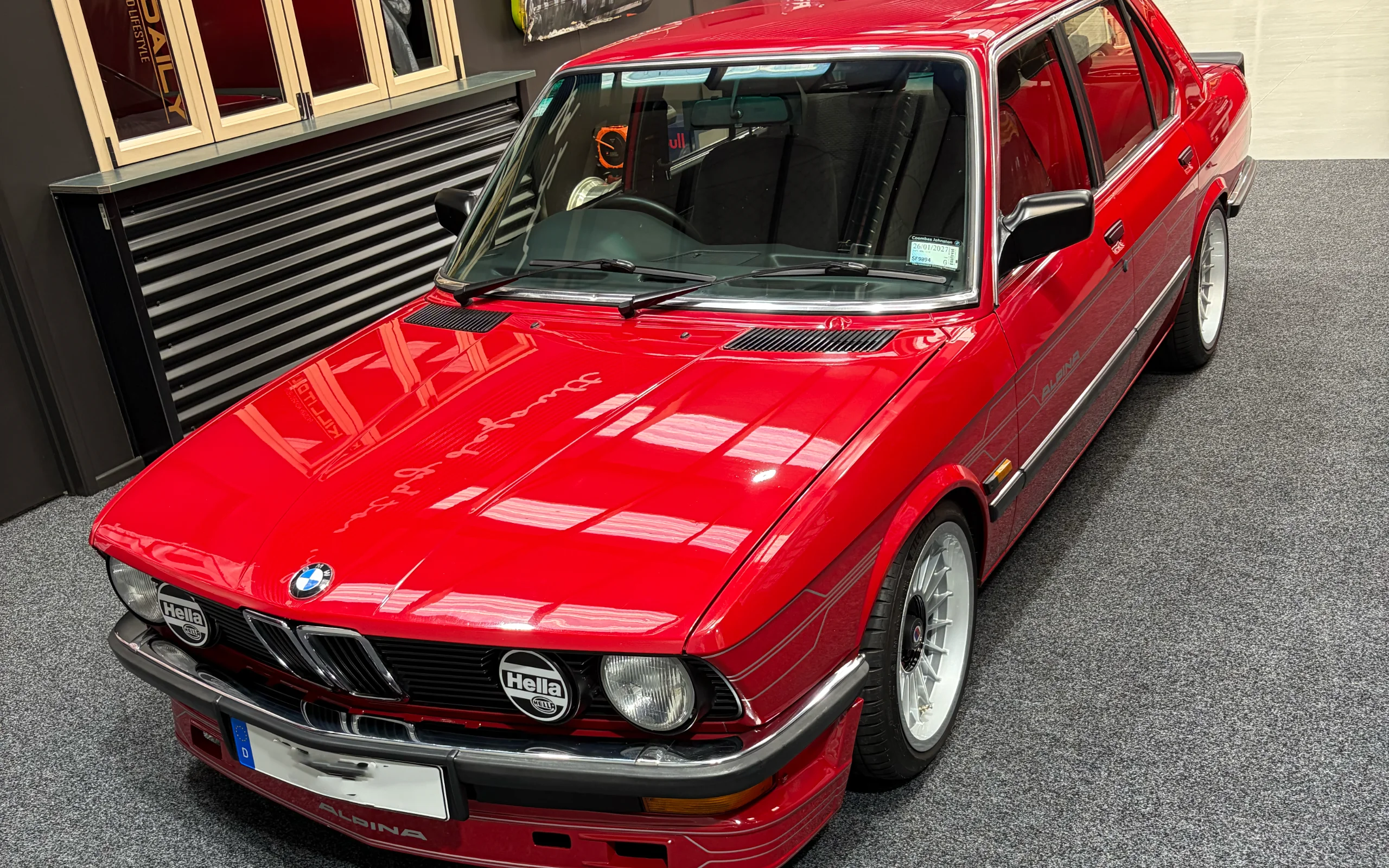

BMW E28

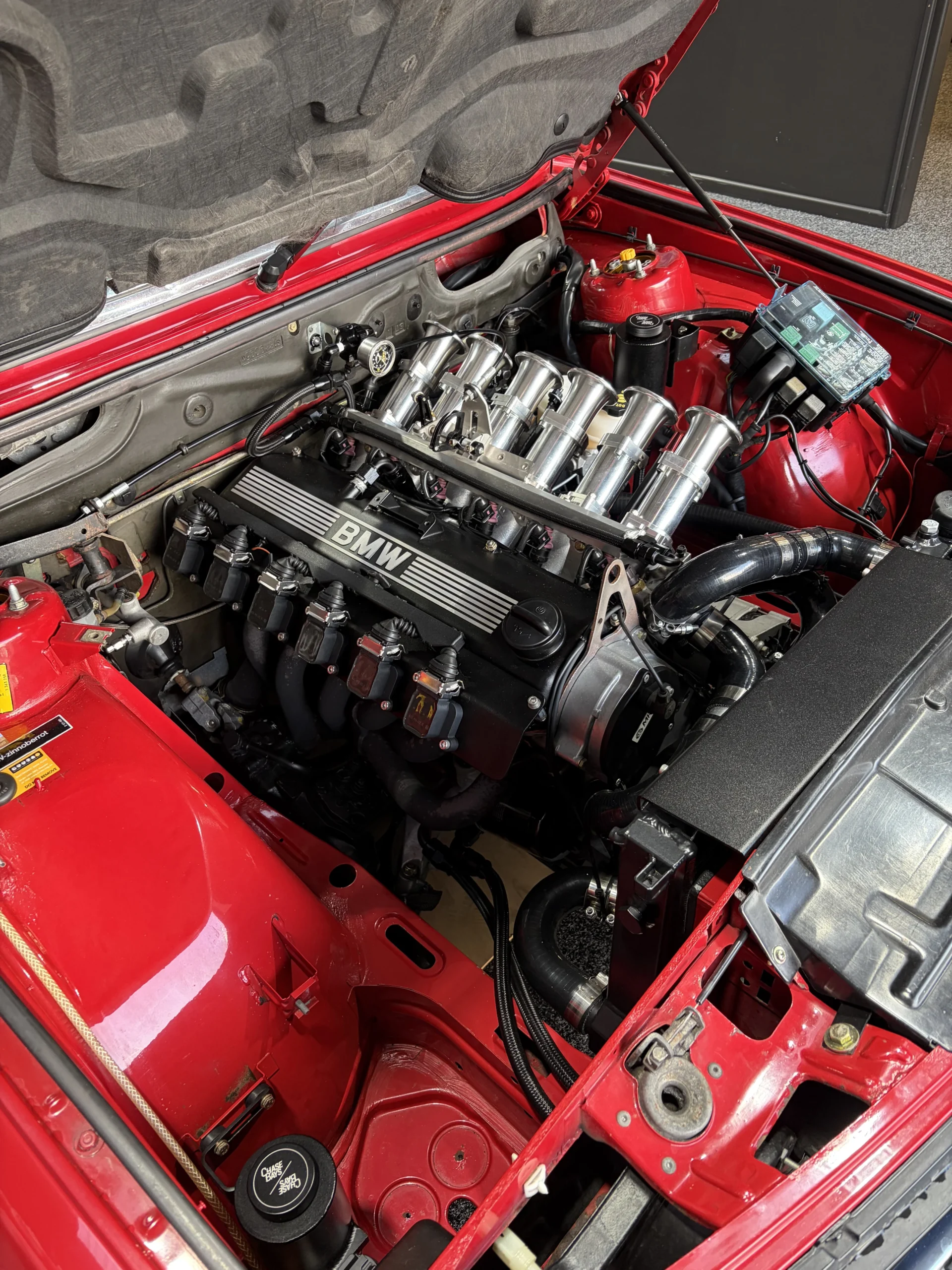

An engine bay finished to show standard, sitting over an underbody that had never been cleaned. Decades of road film off the floors, subframes and drivetrain — no water, no chemicals, nothing dismantled.

The Brief

Clean it
without
soaking it

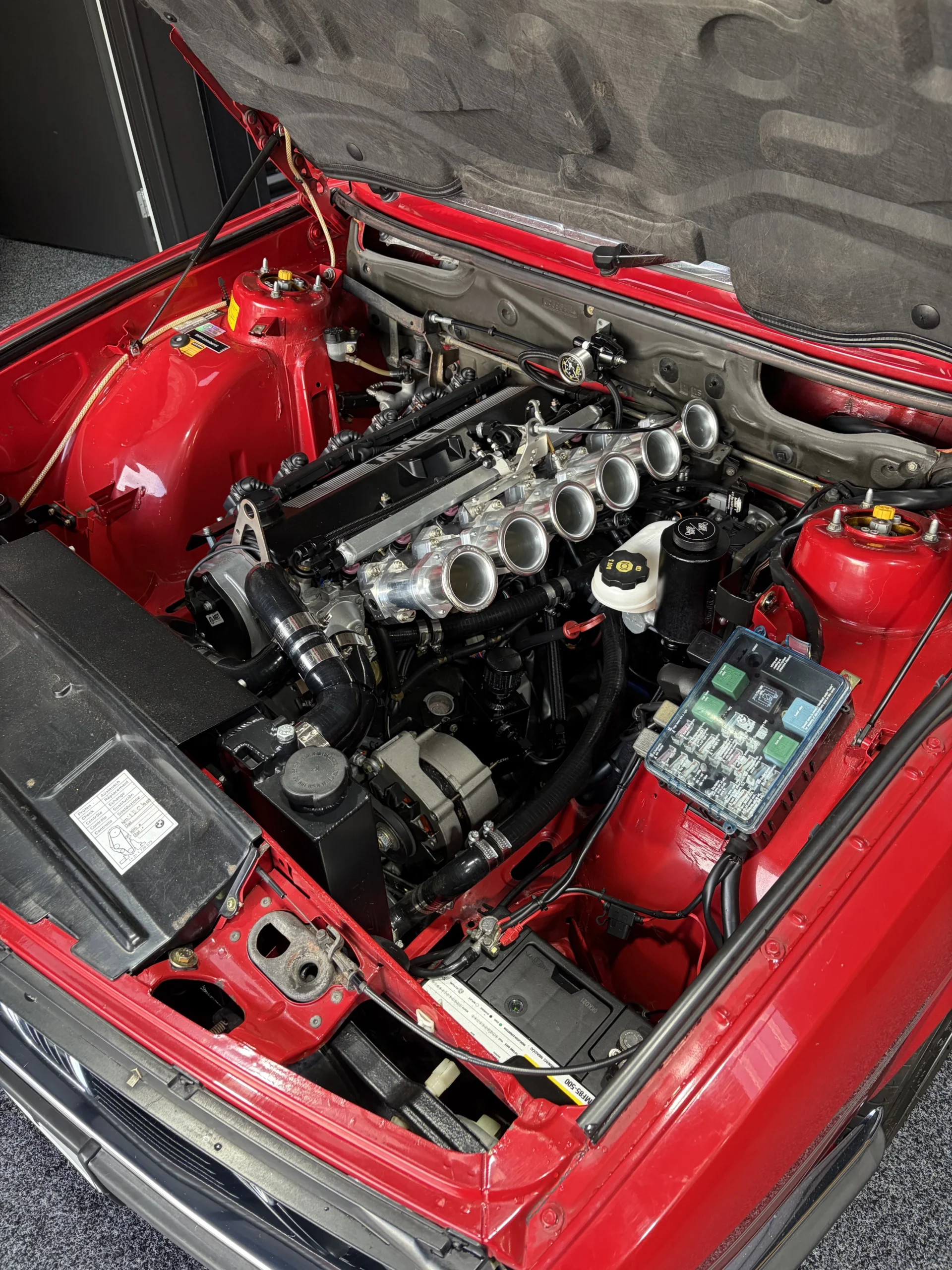

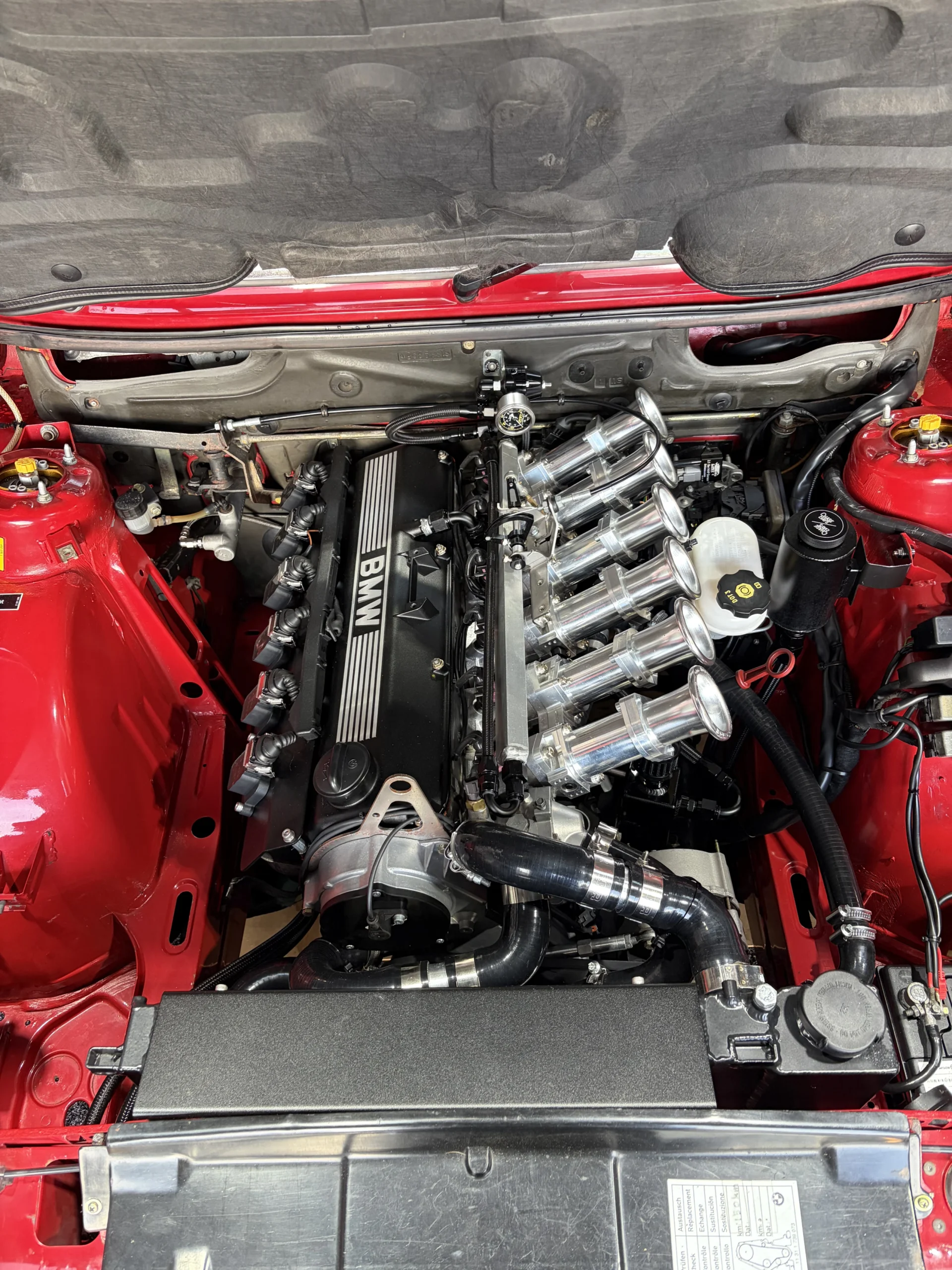

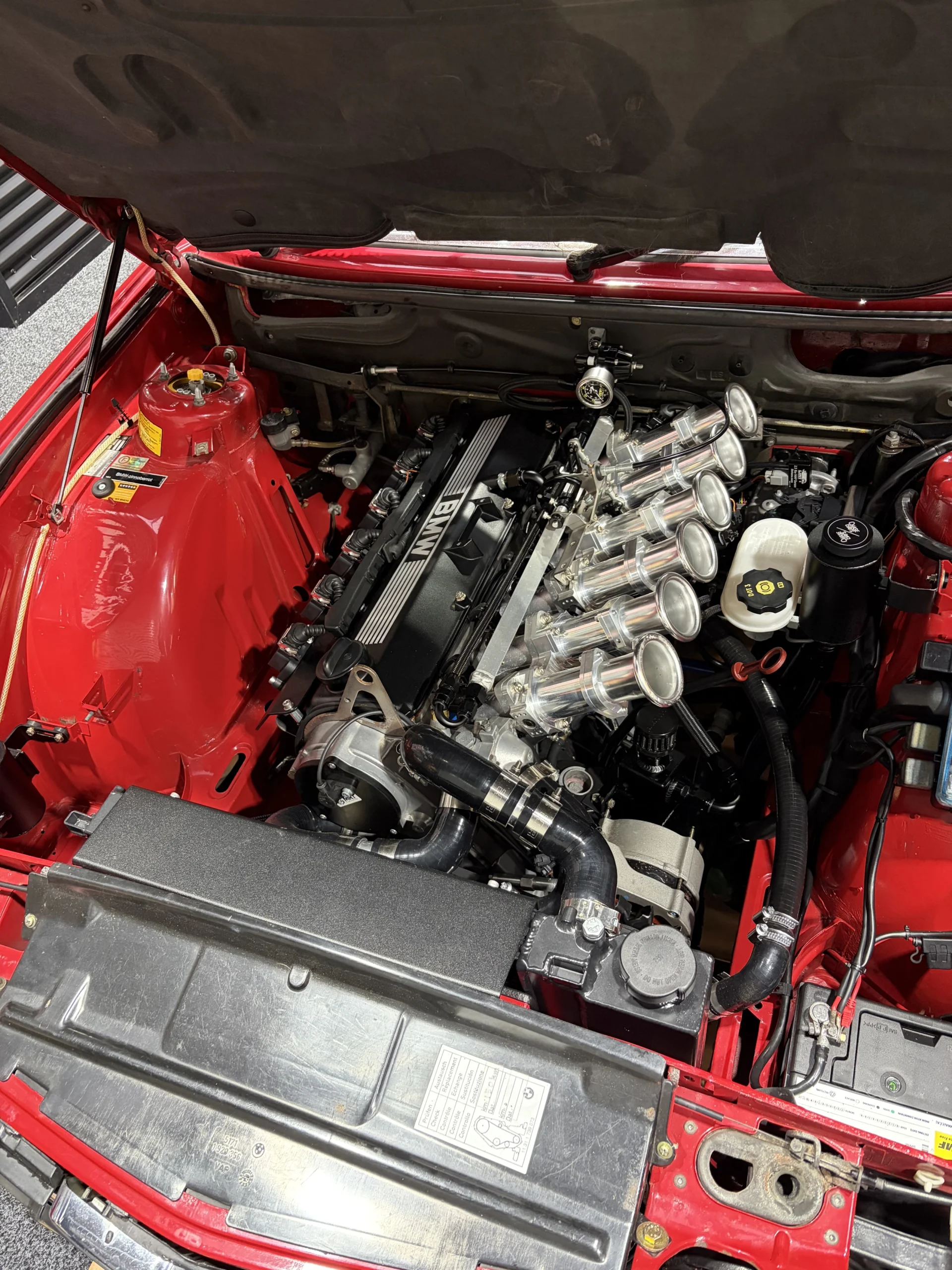

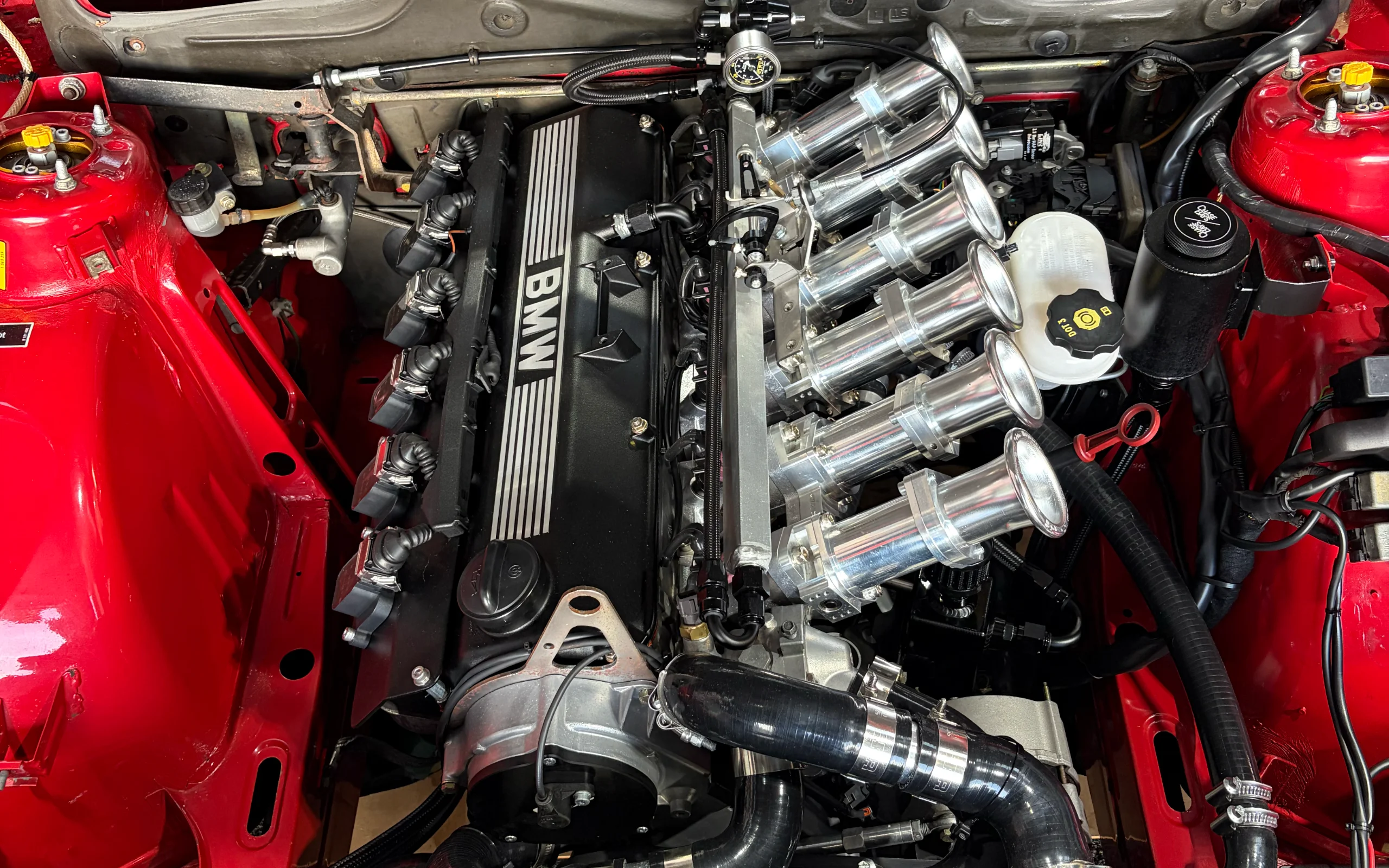

The car arrived on the hoist as a finished build — engine bay done, standalone loom in, coilovers and braided lines fitted. Everything above the floor pan was show-ready. Everything below it still carried decades of road film, and the owner wanted the two to match.

That is the awkward case for conventional cleaning. Pressure washing puts water through a modern loom, its connectors and freshly sealed seams. Degreaser runs down onto suspension bushes and brake components and has to be caught somewhere. Media blasting is impossible with the drivetrain, brakes and lines all still in place.

Dry ice sublimates. It hits the surface at −78 °C, shocks the contaminant layer loose, and turns straight back into gas. Connectors and open lines get masked, extraction sits under the car, and the only thing on the floor at the end is what came off it.

01

Strip road film and oil mist from the floors, subframes and drivetrain with the car fully assembled.

02

Keep the standalone loom, its connectors and the braided lines completely dry.

03

Clean the inner arches back to paint without touching the finish underneath.

04

Leave an underbody that matches the standard of the engine bay above it.

Restoration-level results

Before & After

Same corner of the car, shot on the hoist before the first pass and again after the last. Nothing retouched, nothing colour-graded, nothing painted afterwards.

01

Front arch, hub & disc

Arch cleaned back to paint

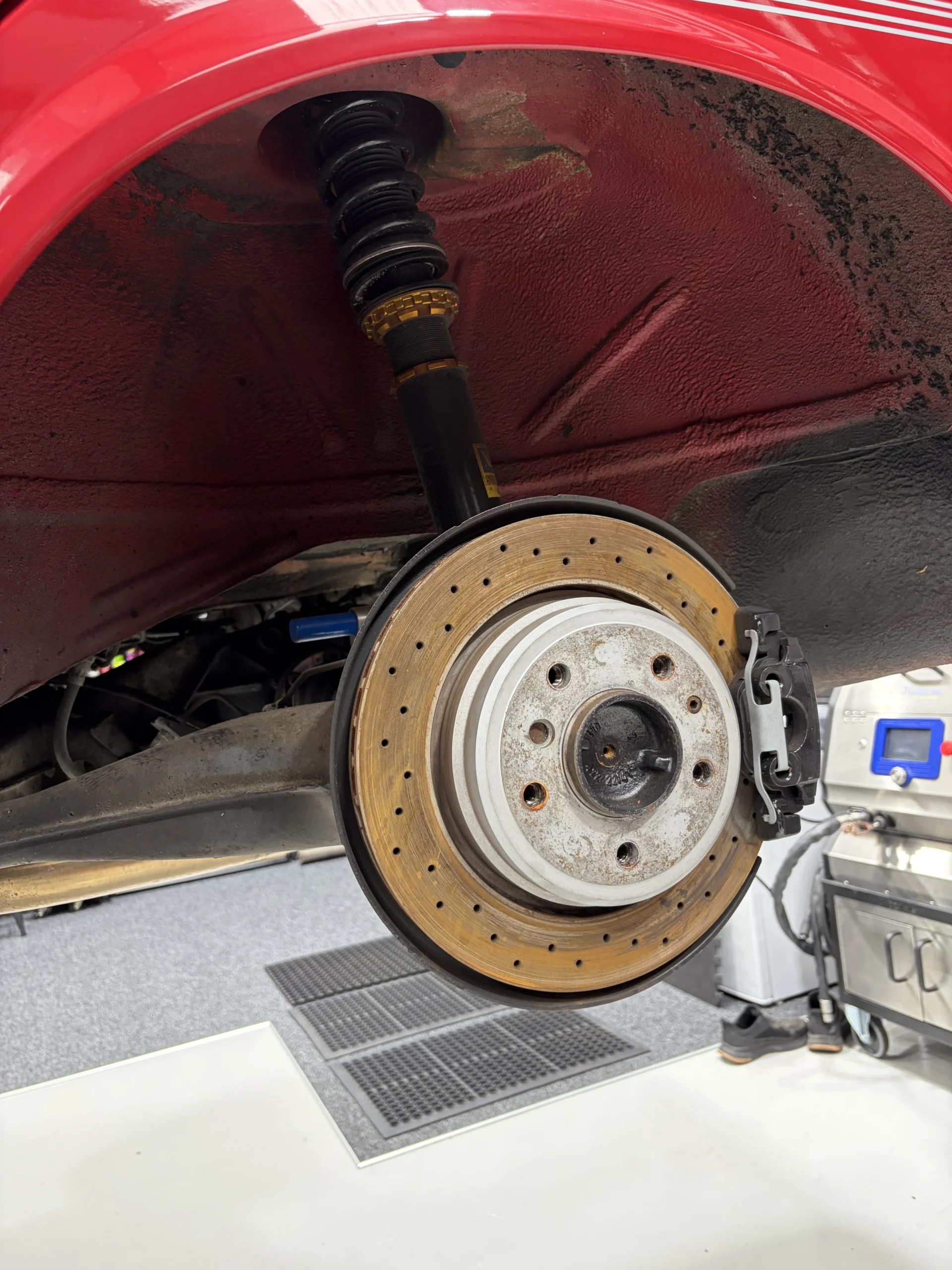

Before

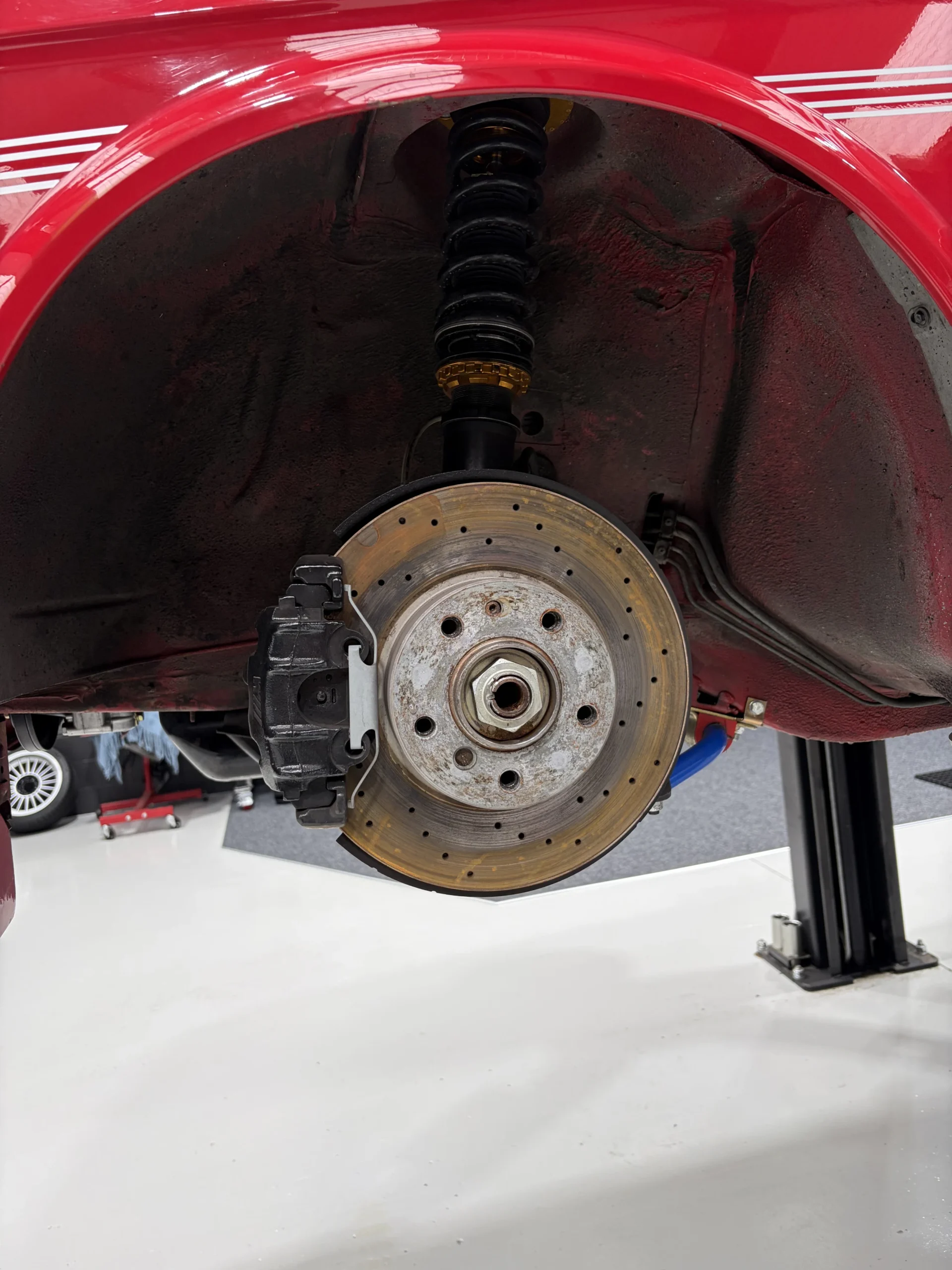

BMW E28 front wheel arch, hub and drilled disc before dry ice cleaning, under road film and grime

Grey film over the arch, the hub and the drilled disc.

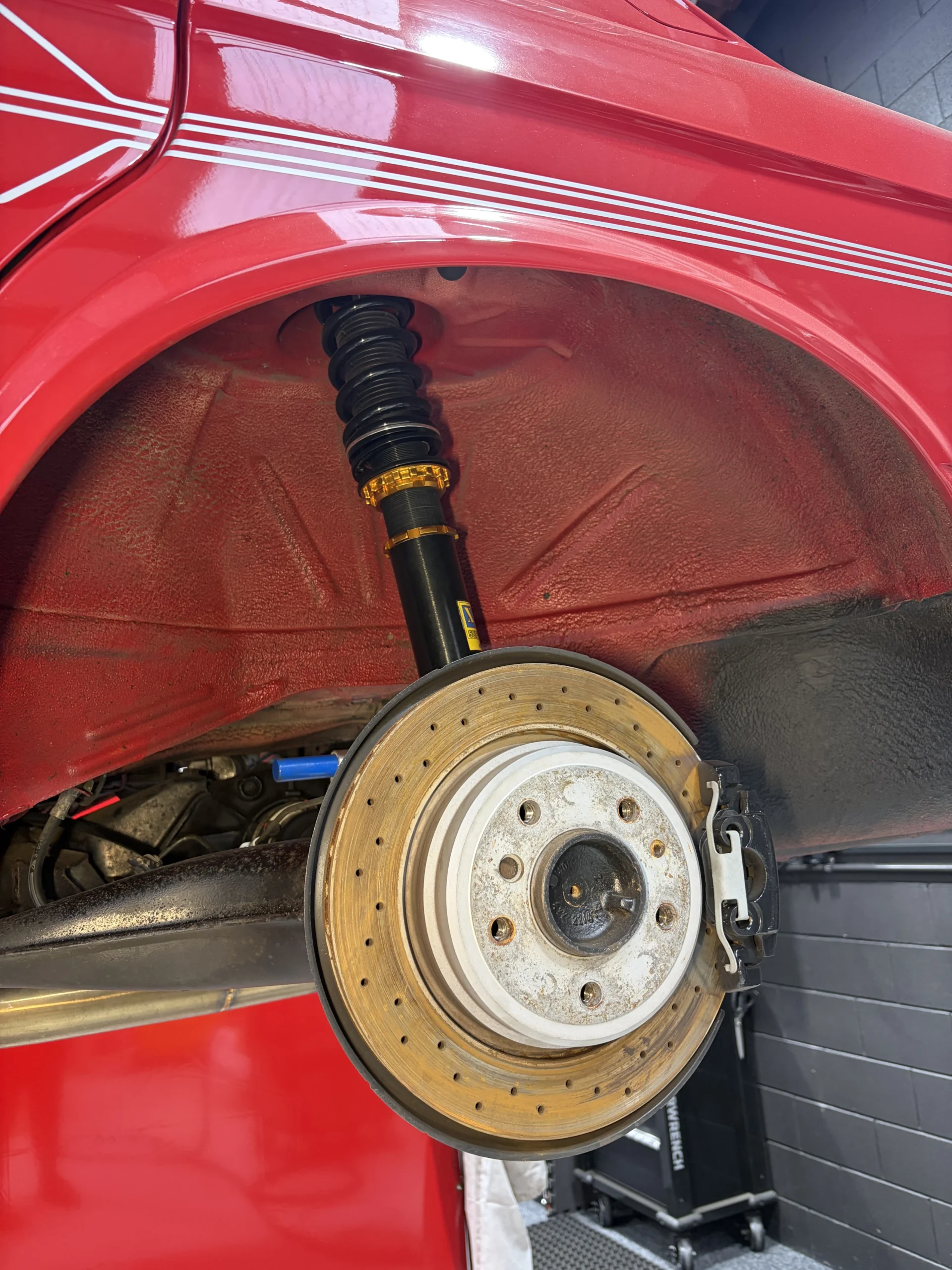

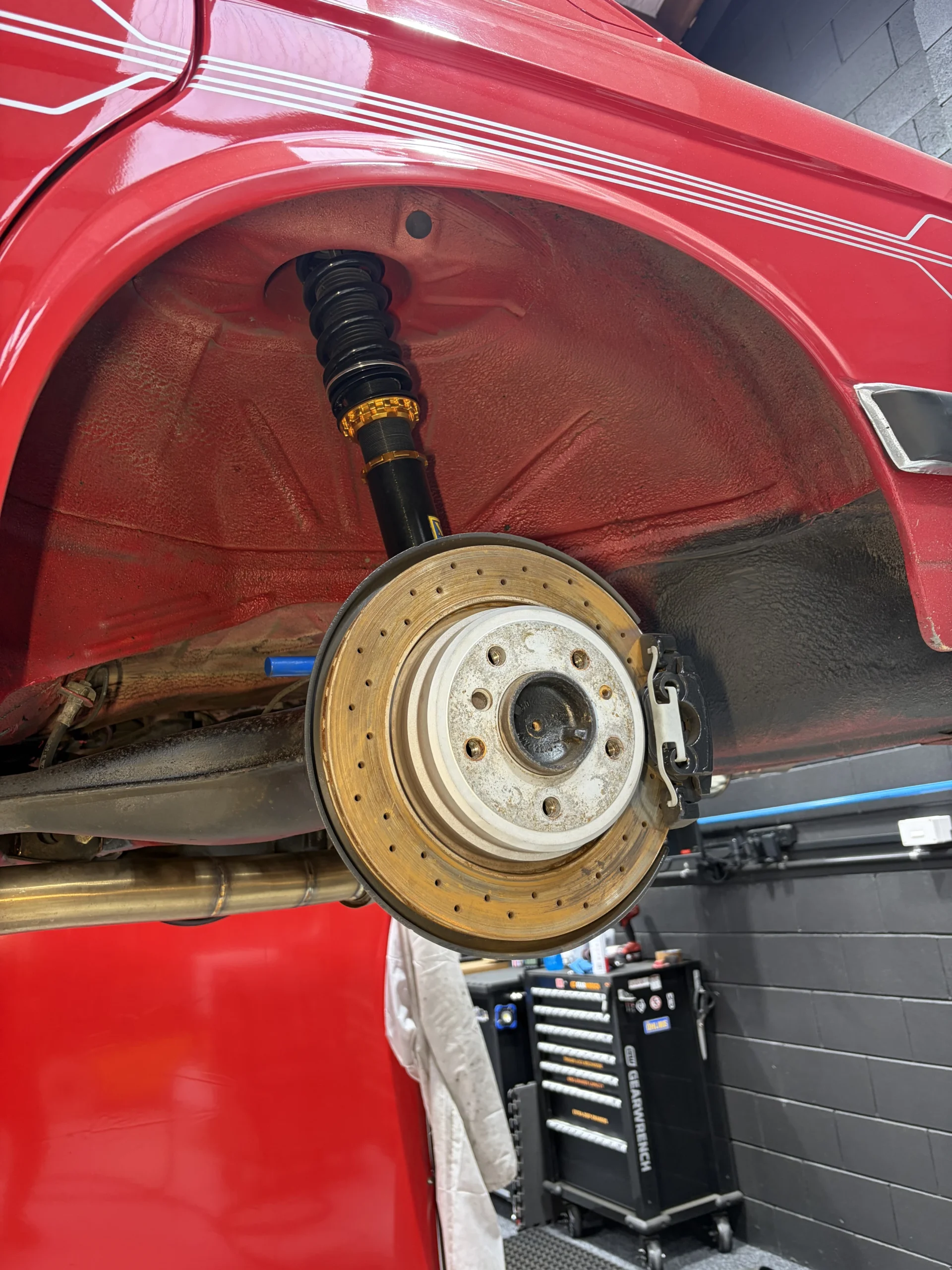

After

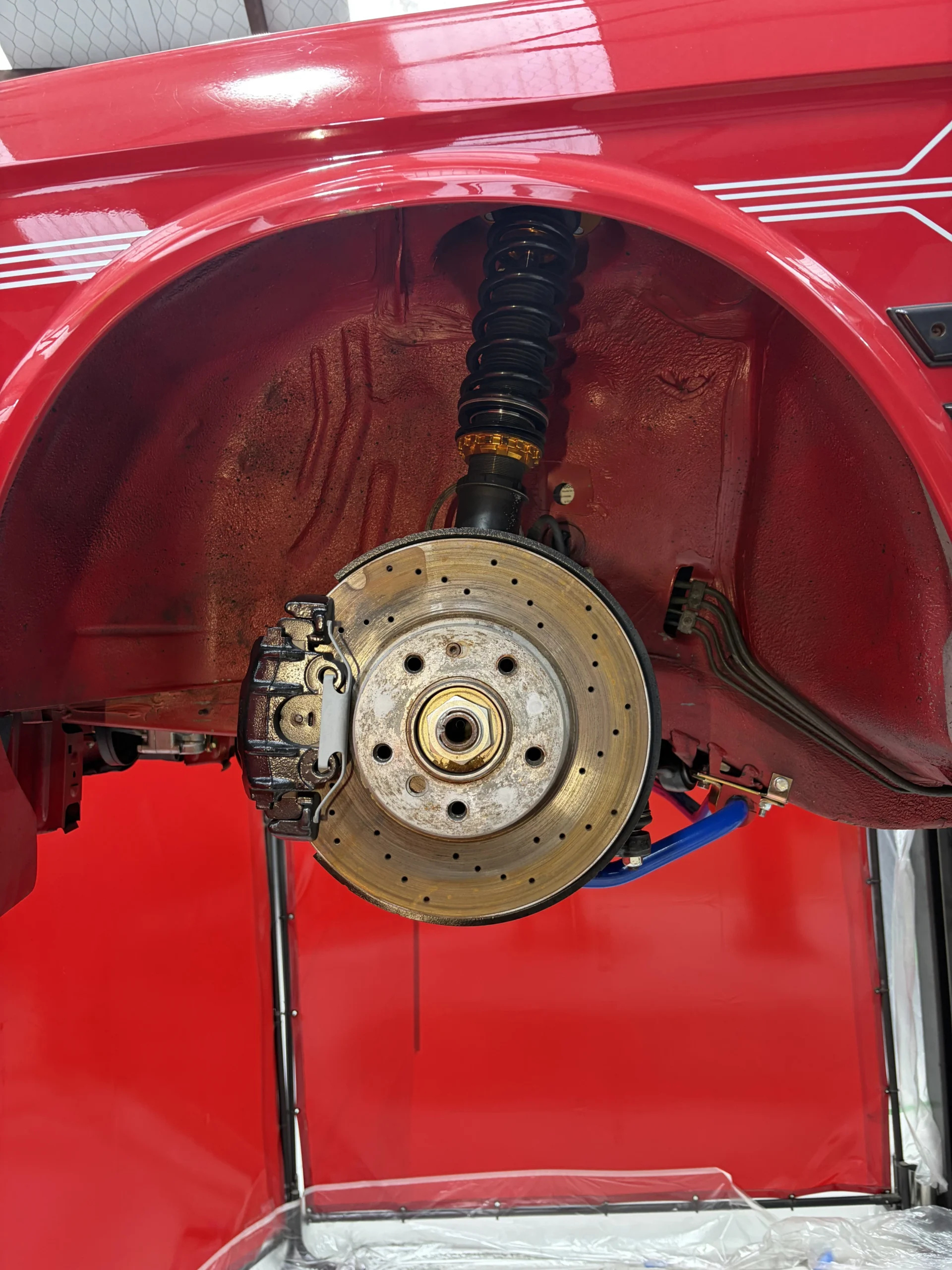

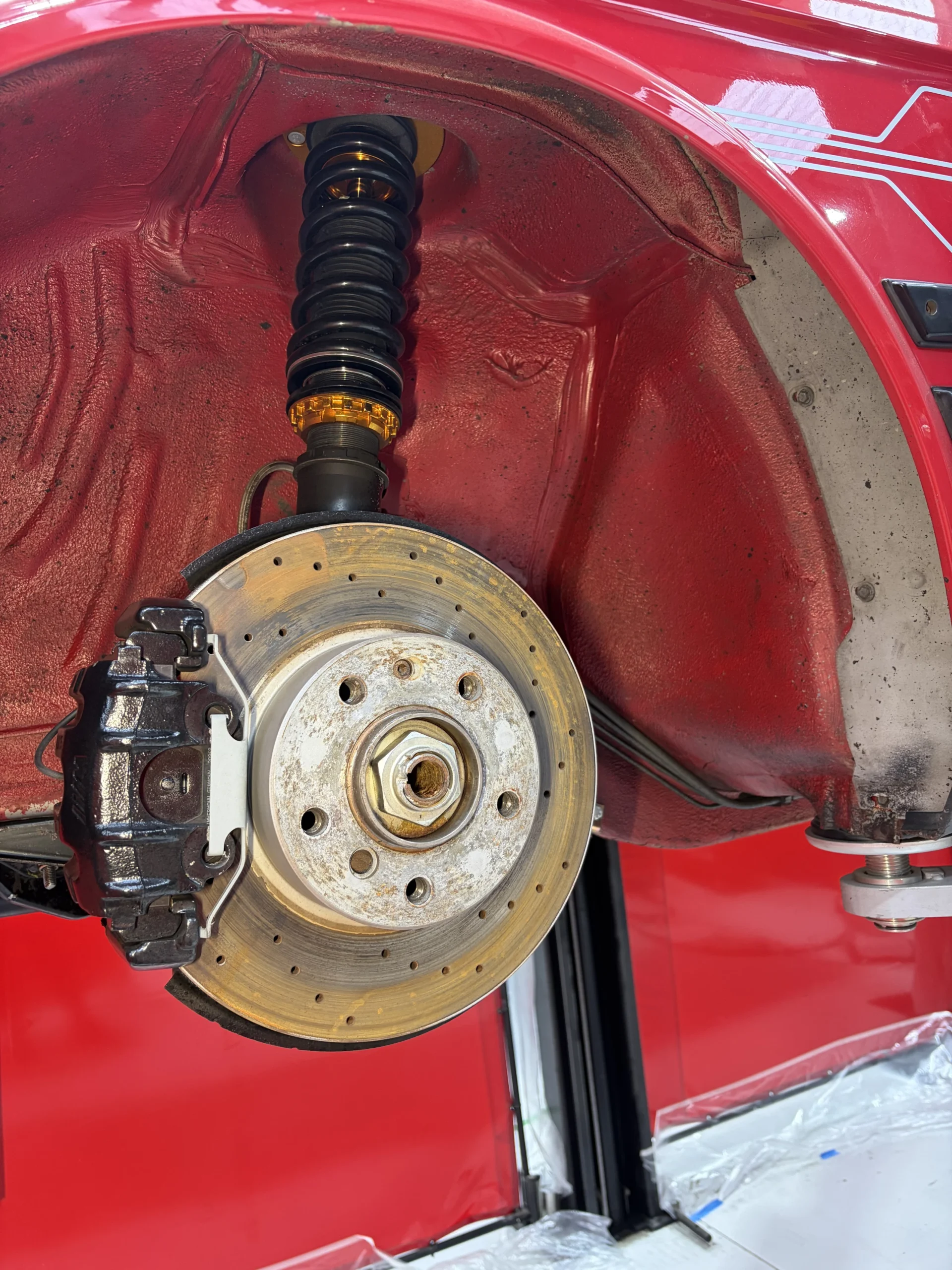

BMW E28 front wheel arch, hub and drilled disc after dry ice blasting, clean and dry with factory finishes intact

Arch back to red, hardware and disc face readable.

02

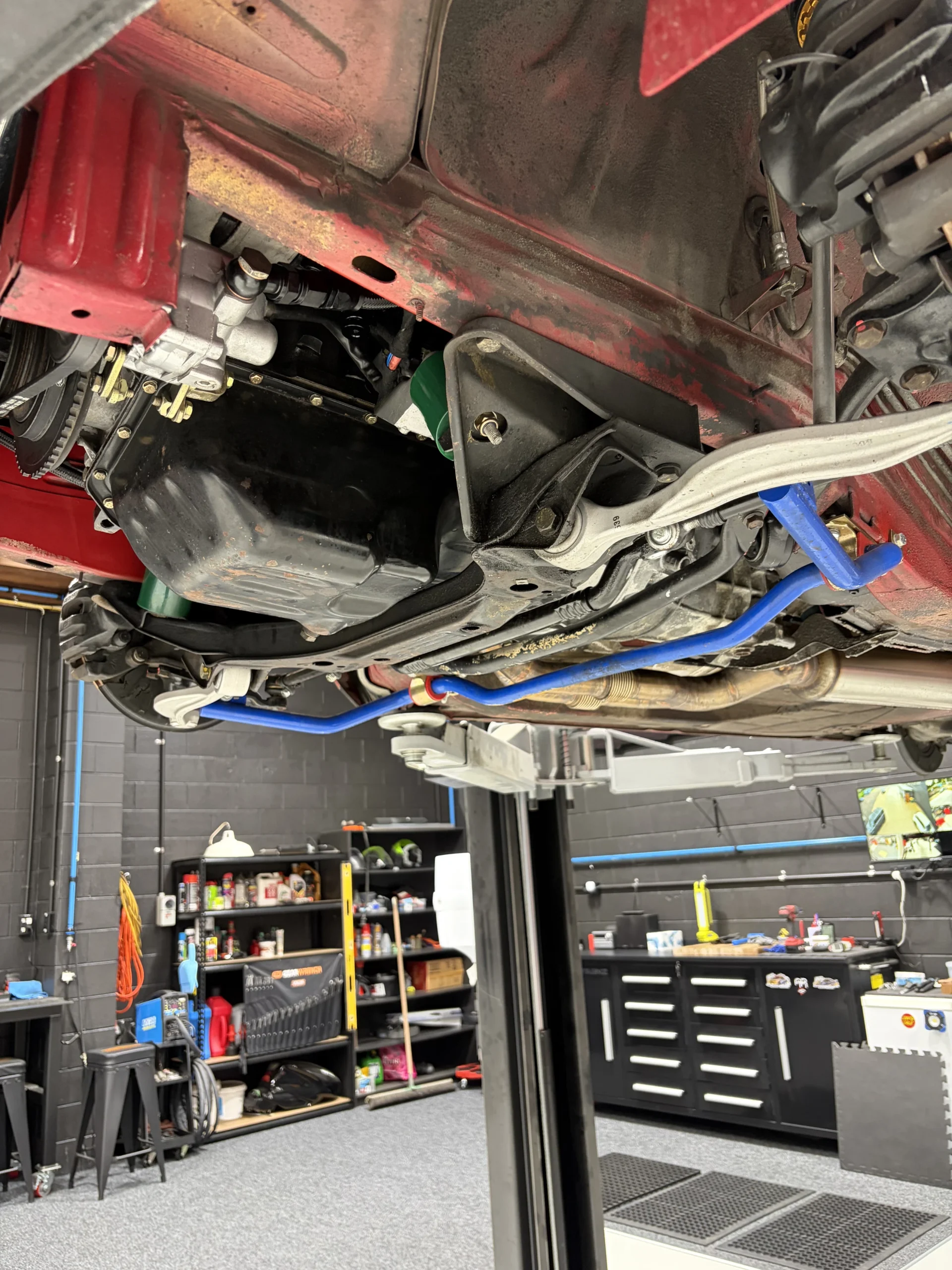

Front subframe & steering

Loom and lines masked throughout

Before

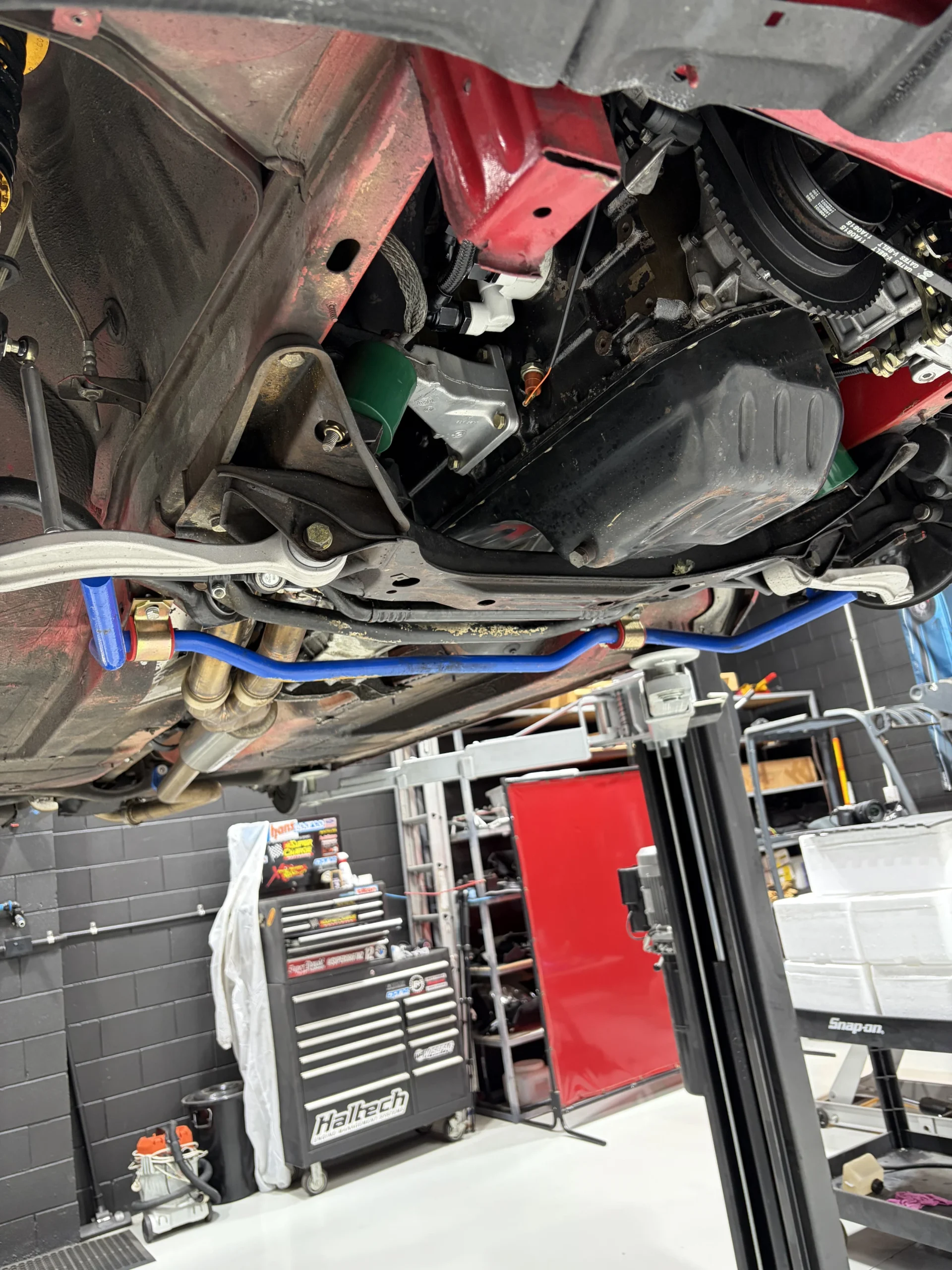

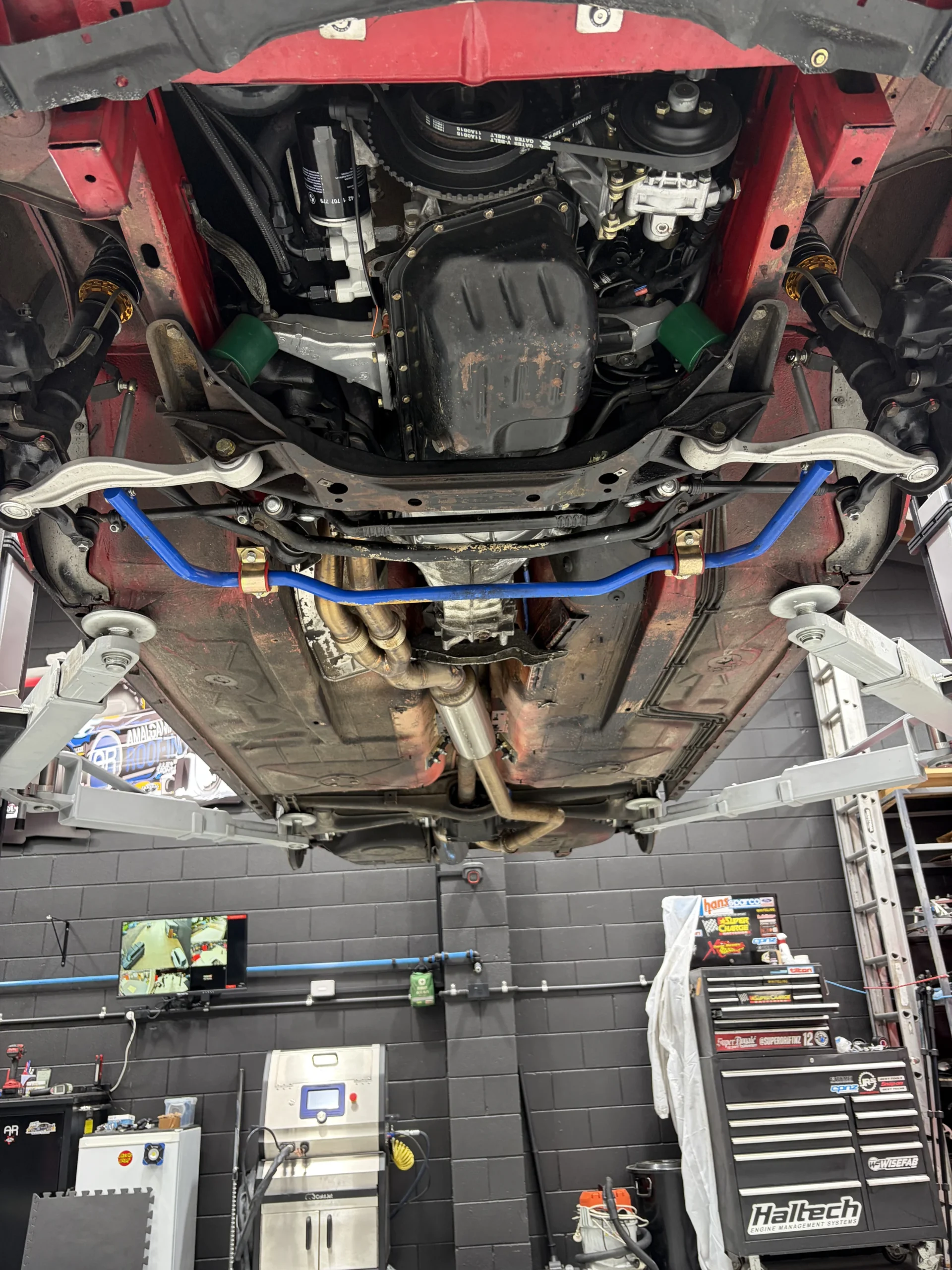

BMW E28 front subframe, control arms and steering before dry ice cleaning, under road film and grime

Subframe, sump guard and arms all one colour.

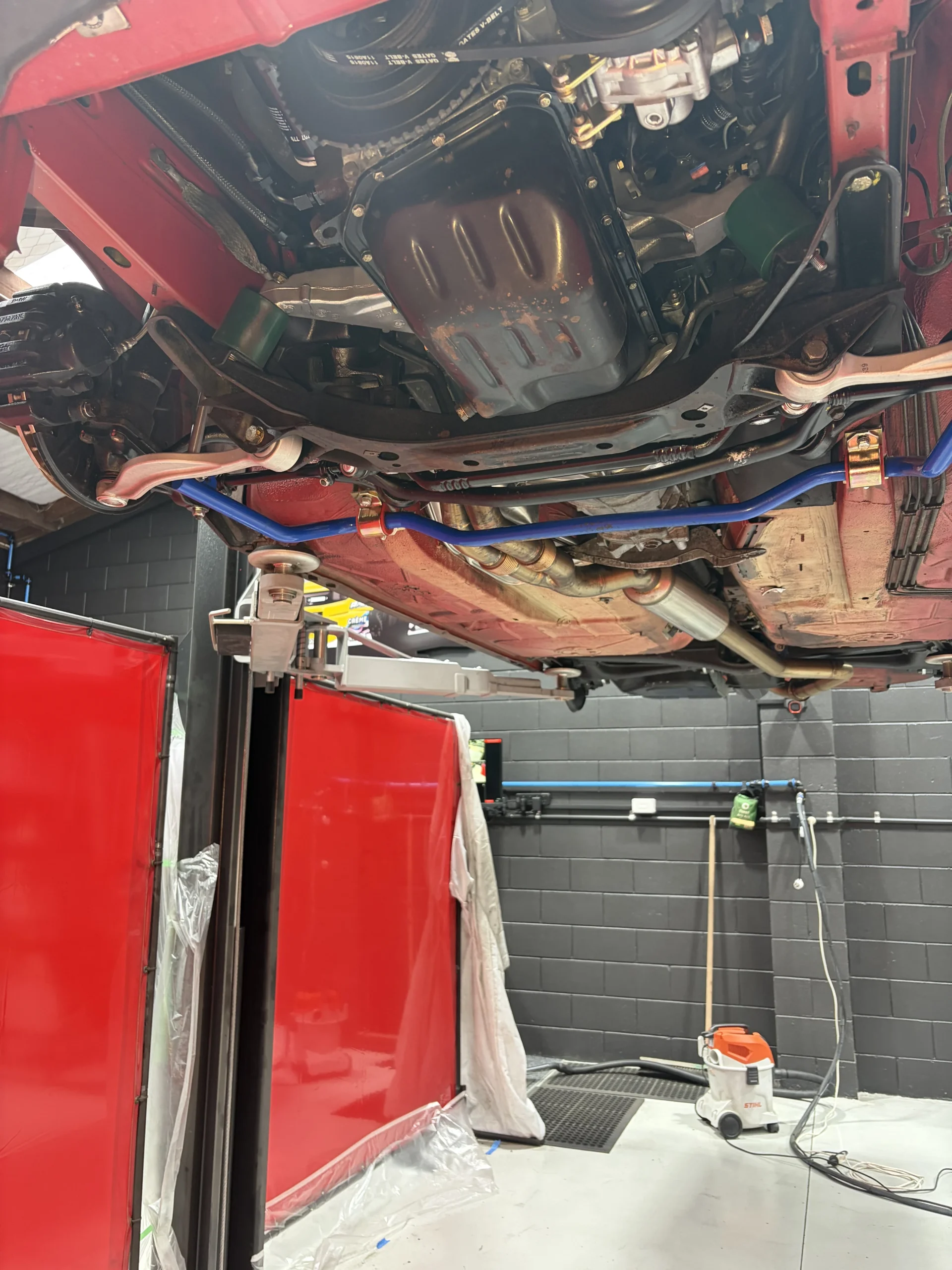

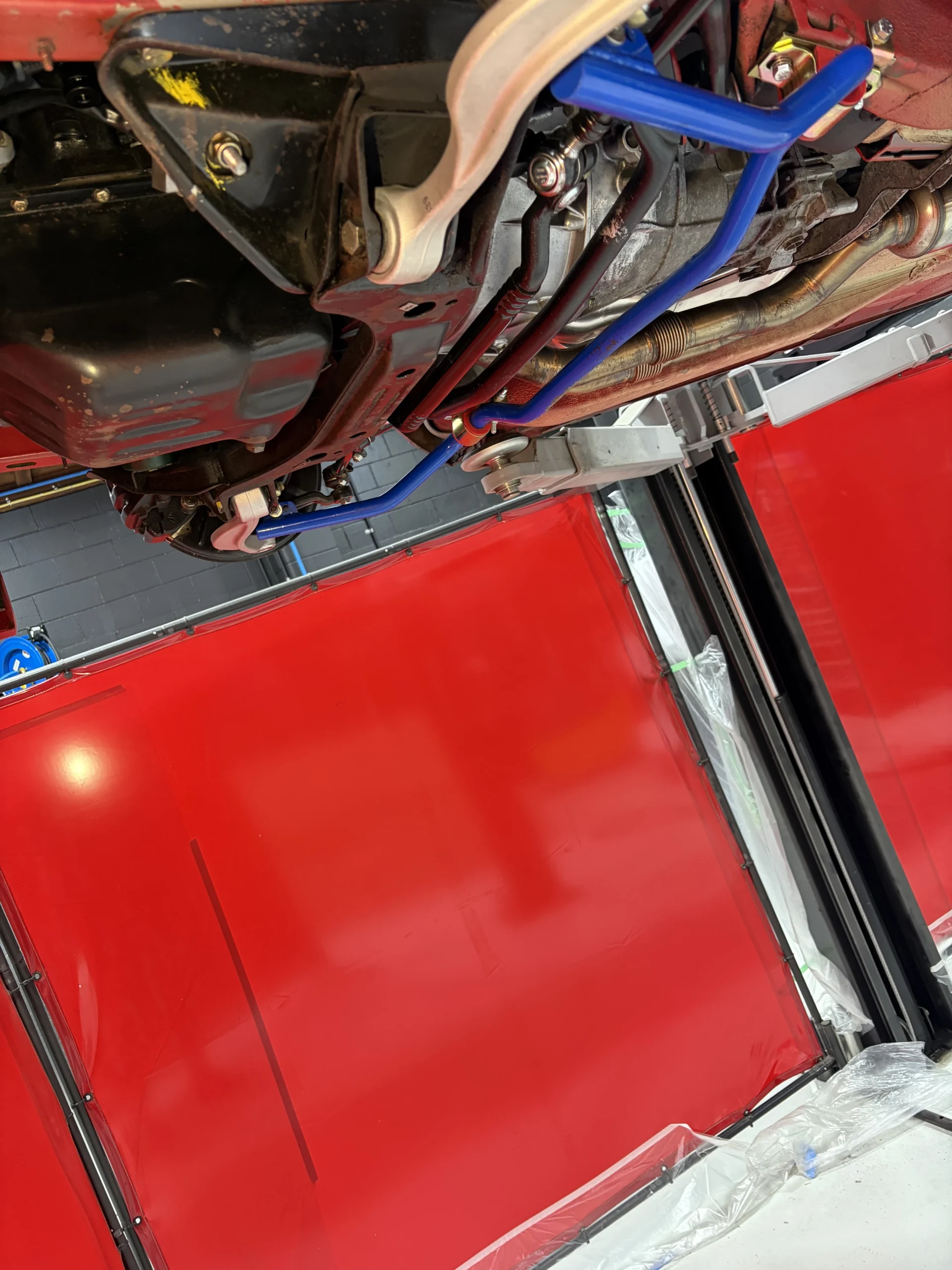

After

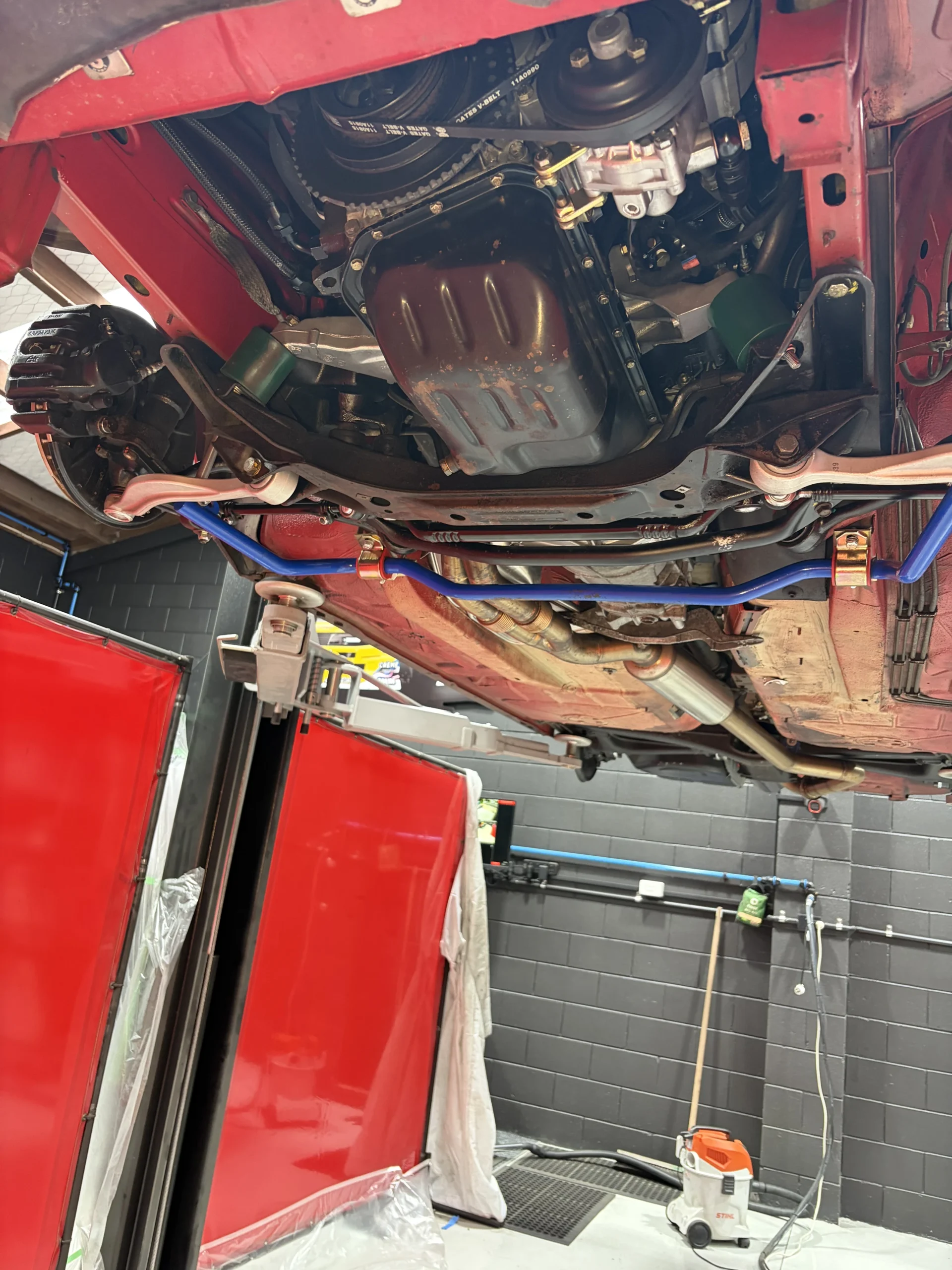

BMW E28 front subframe, sump guard and anti-roll bar after dry ice blasting, clean and dry with factory finishes intact

Steel, alloy and the anti-roll bar separating out again.

03

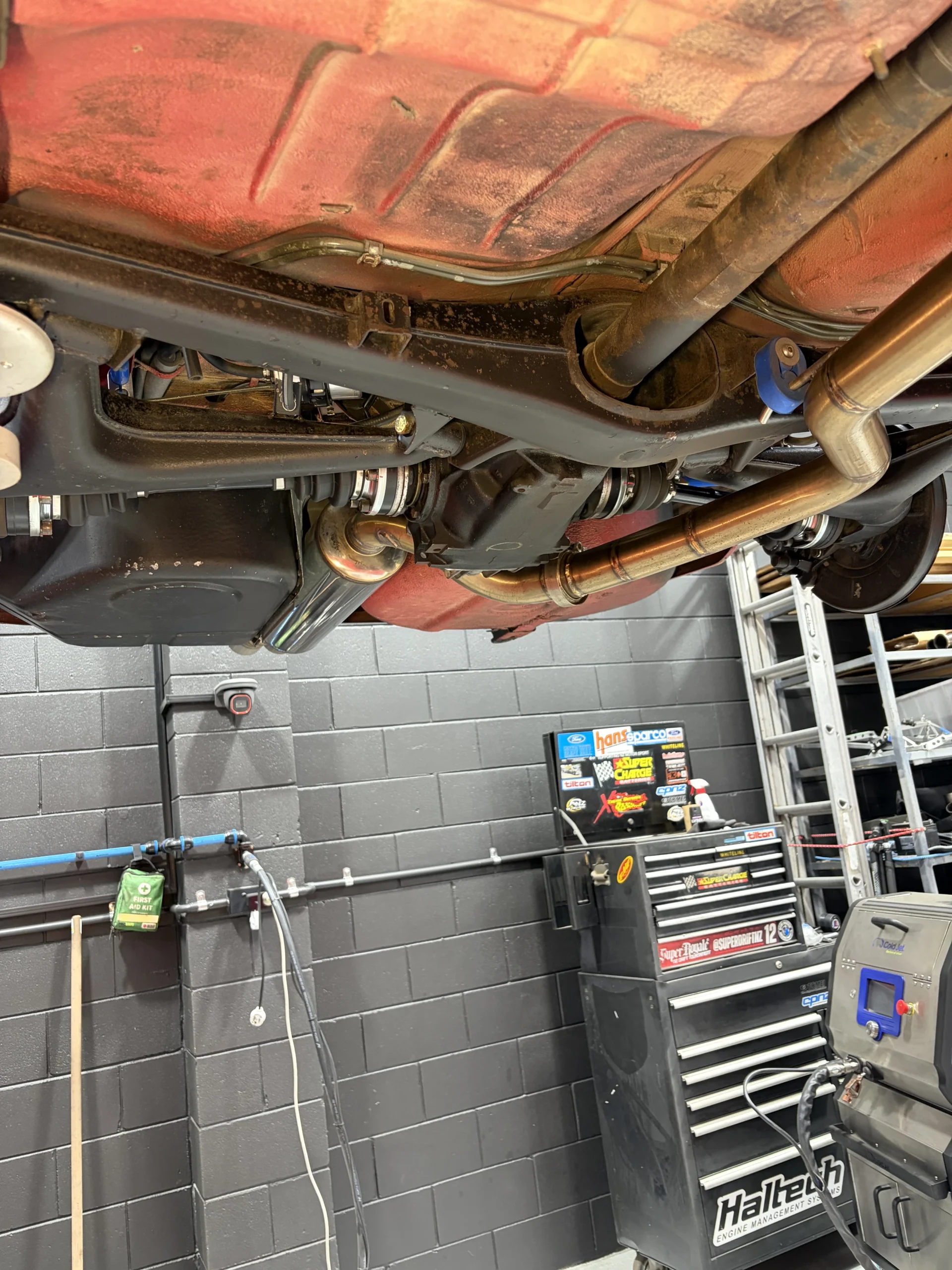

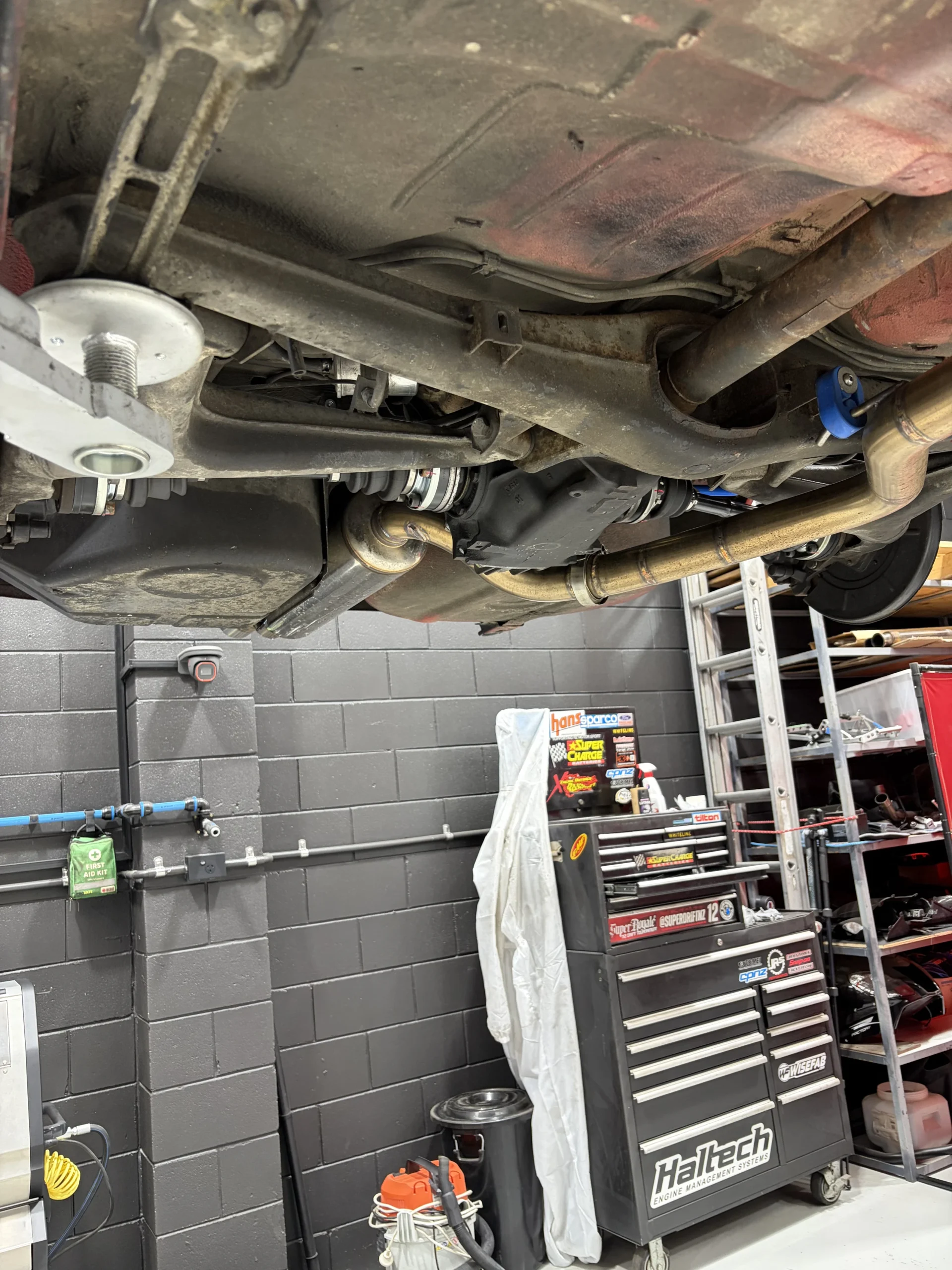

Fuel tank, driveshaft & exhaust

Nothing removed to reach it

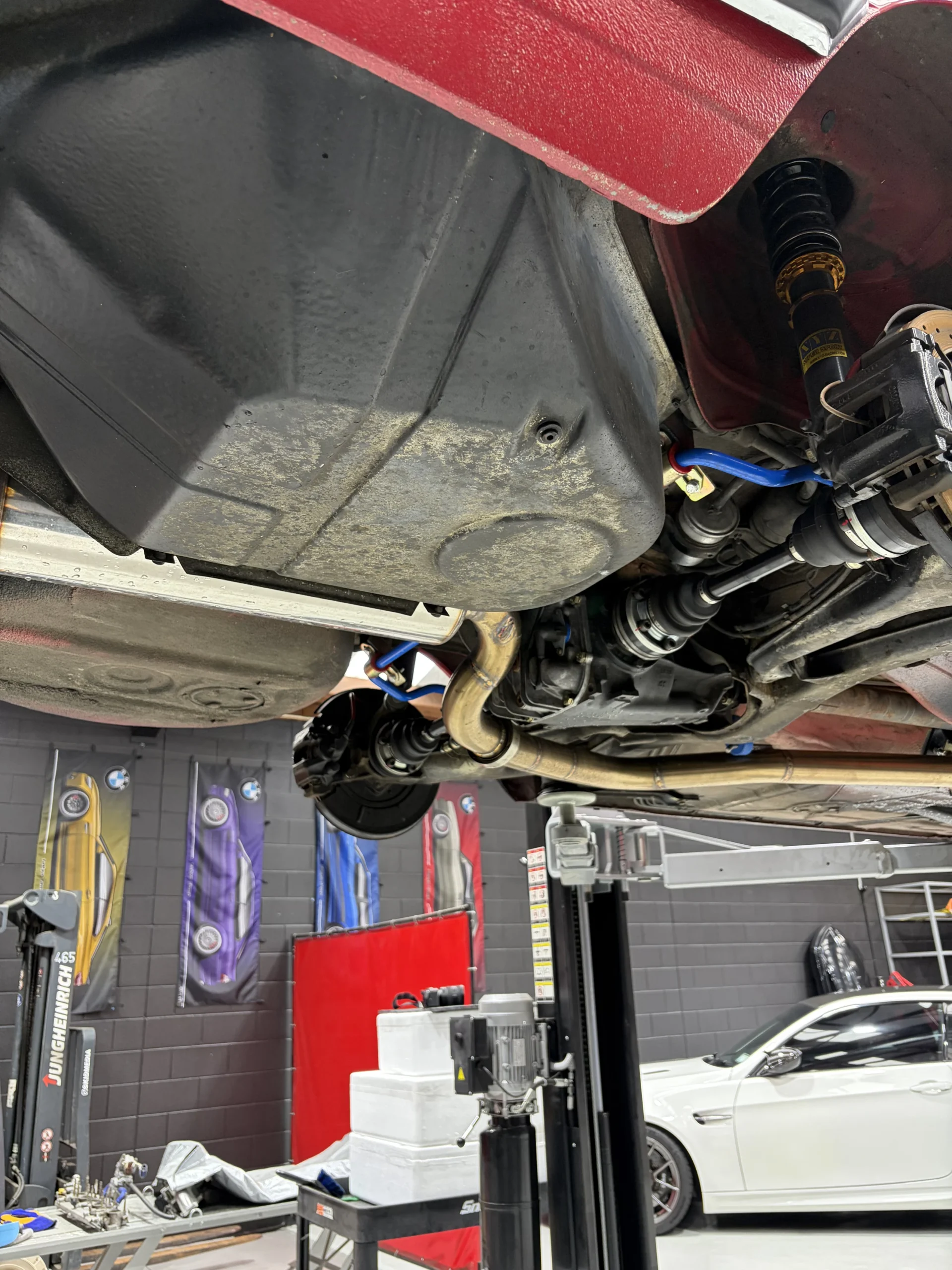

Before

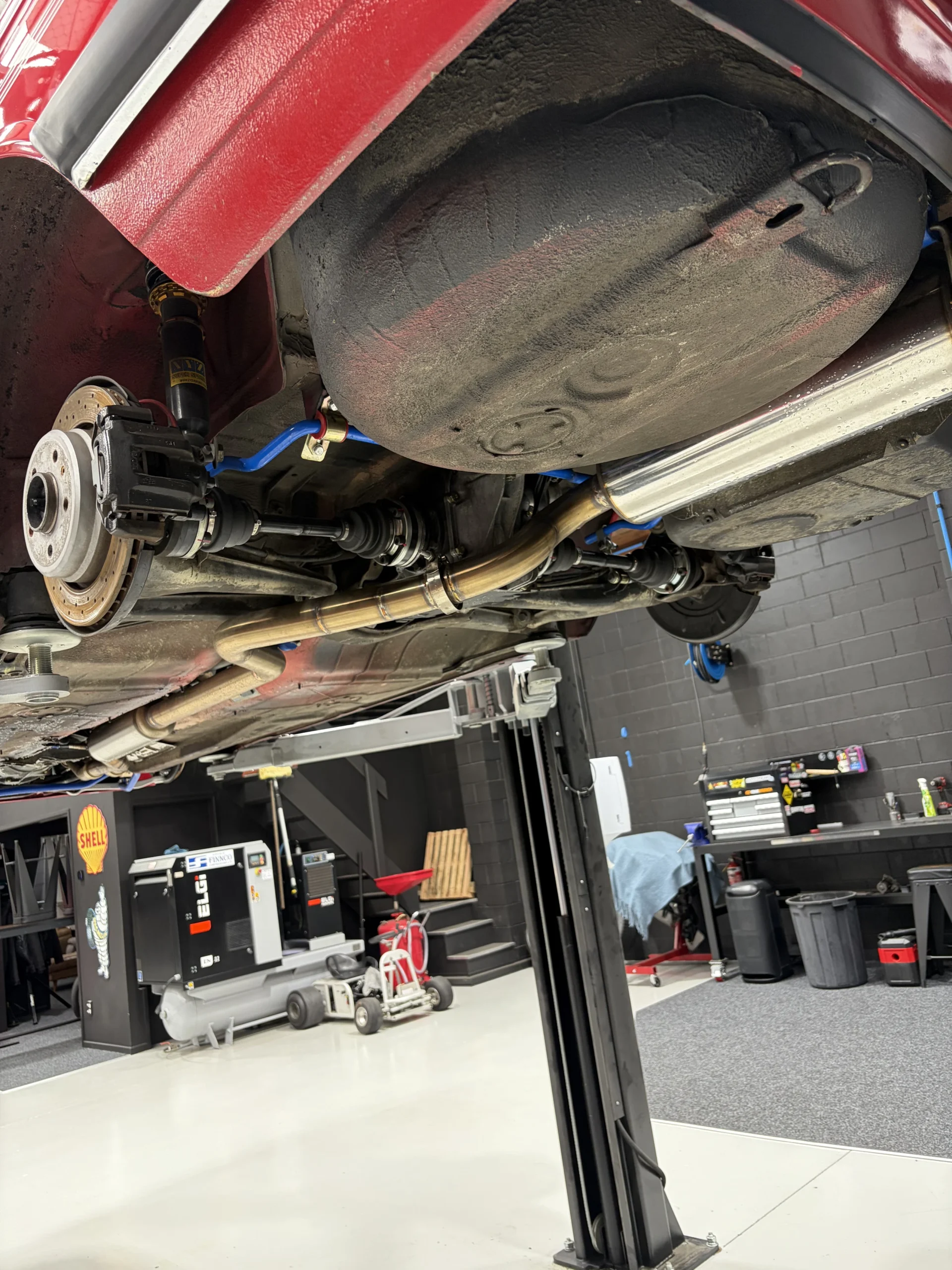

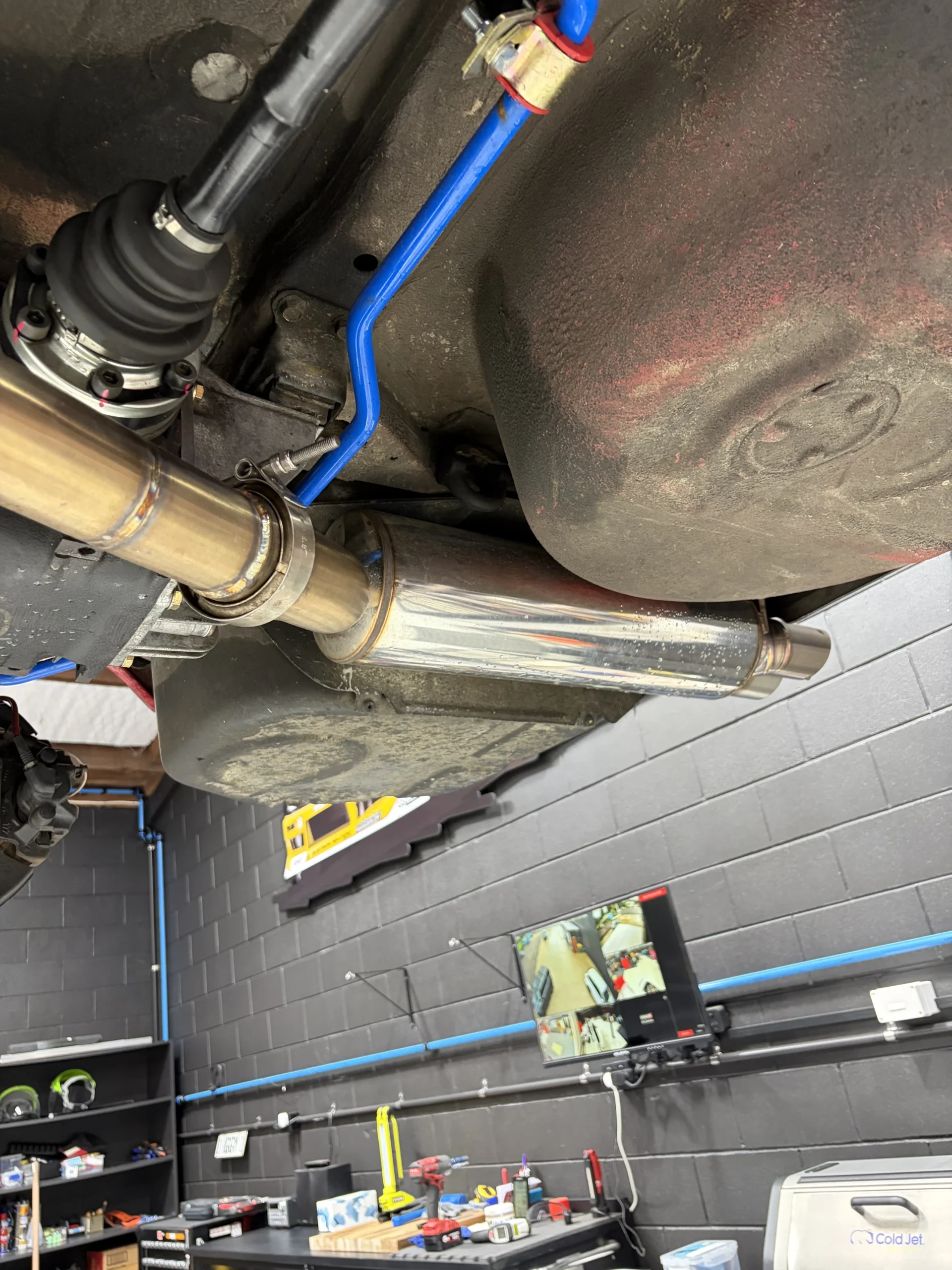

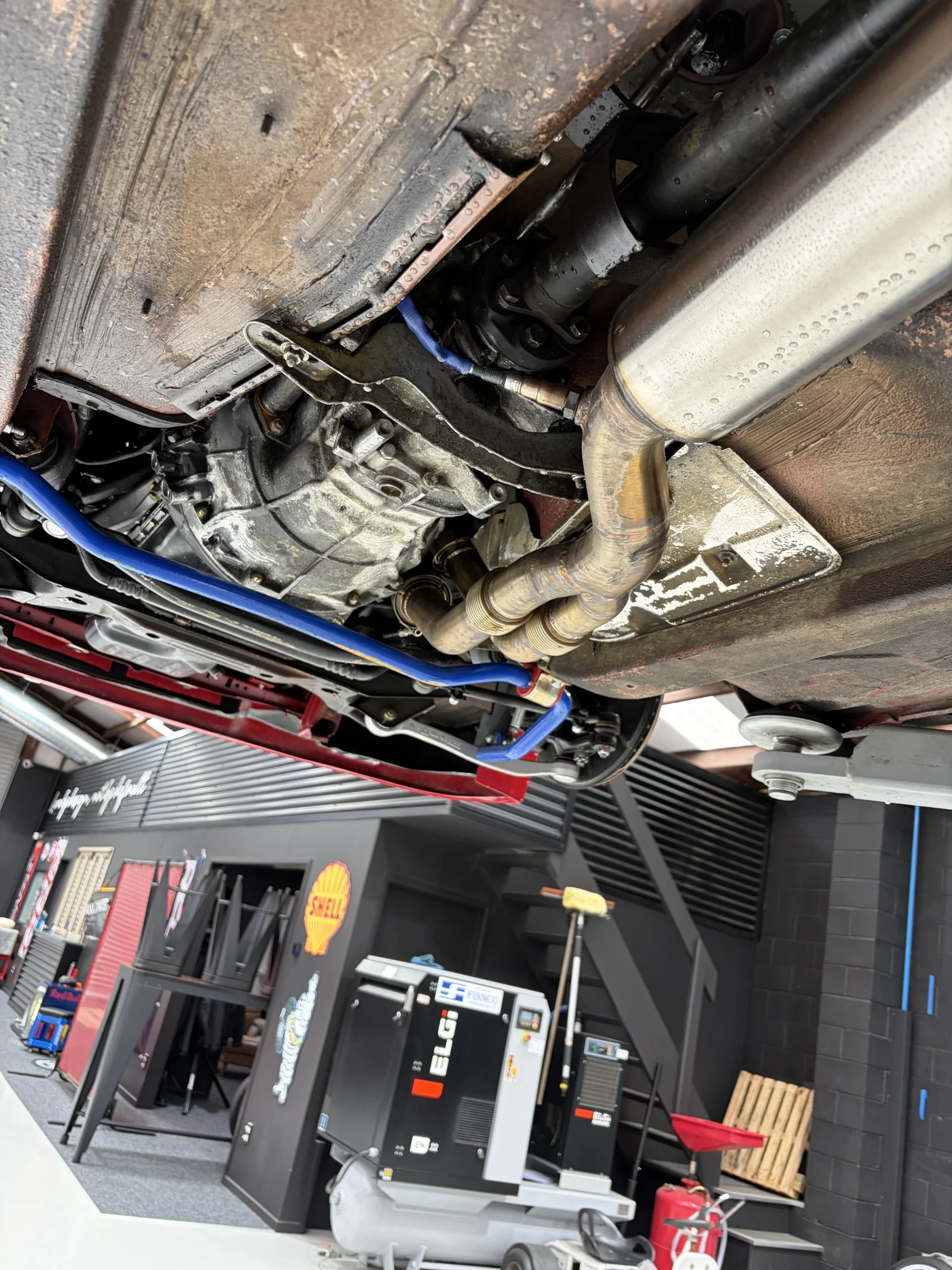

BMW E28 fuel tank, driveshaft and exhaust before dry ice cleaning, under road film and grime

Tank and tunnel under a uniform brown film.

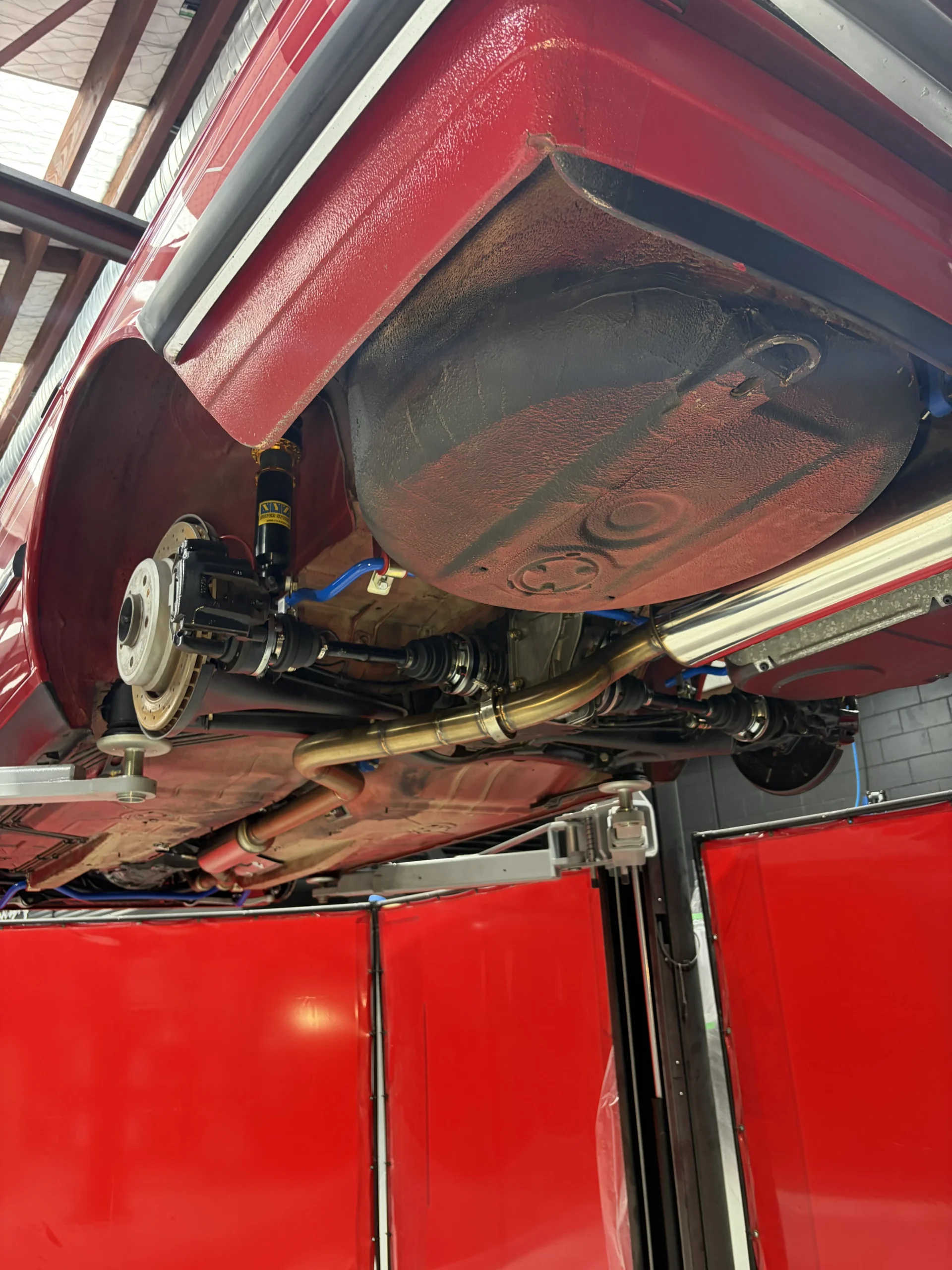

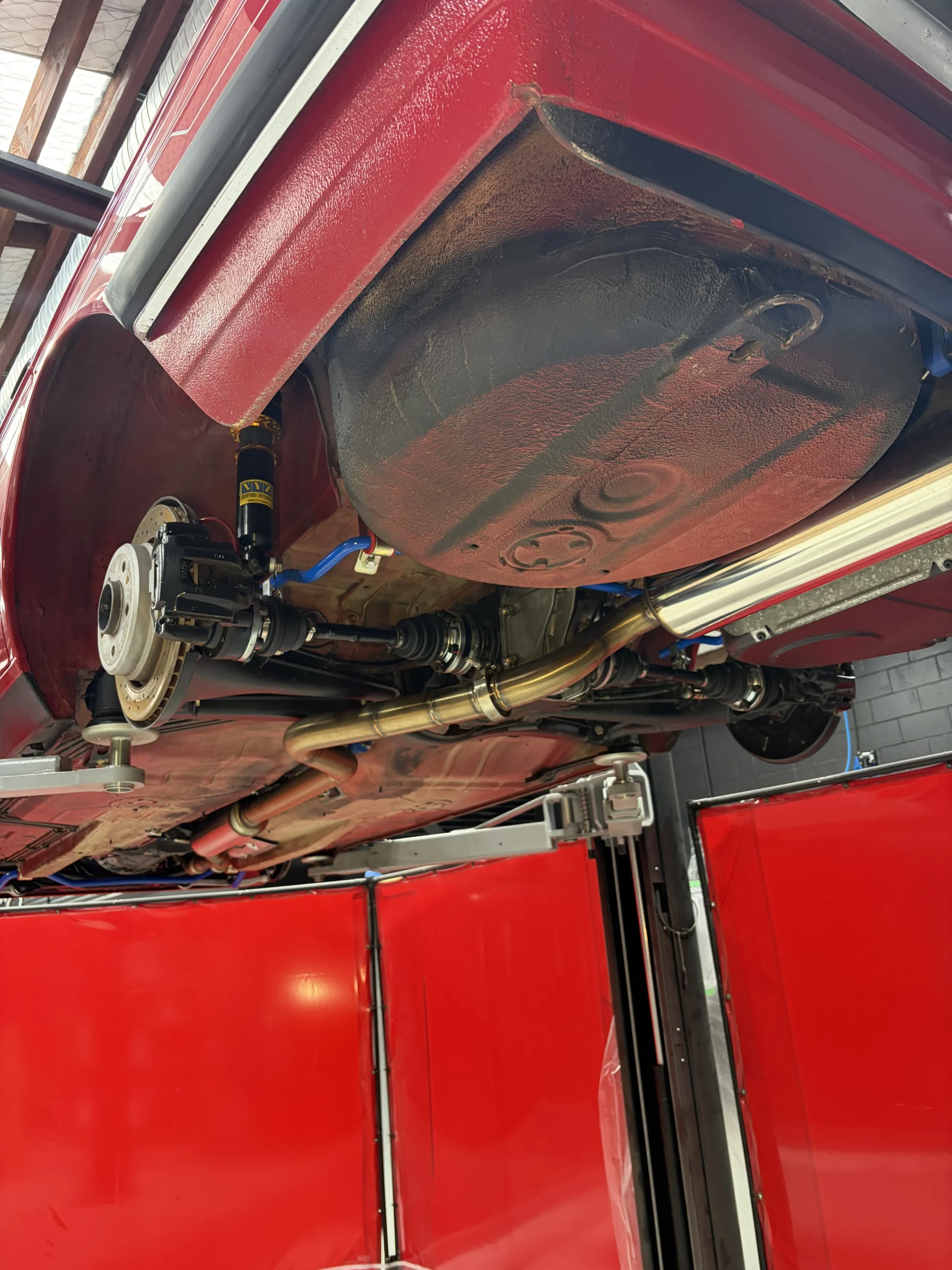

After

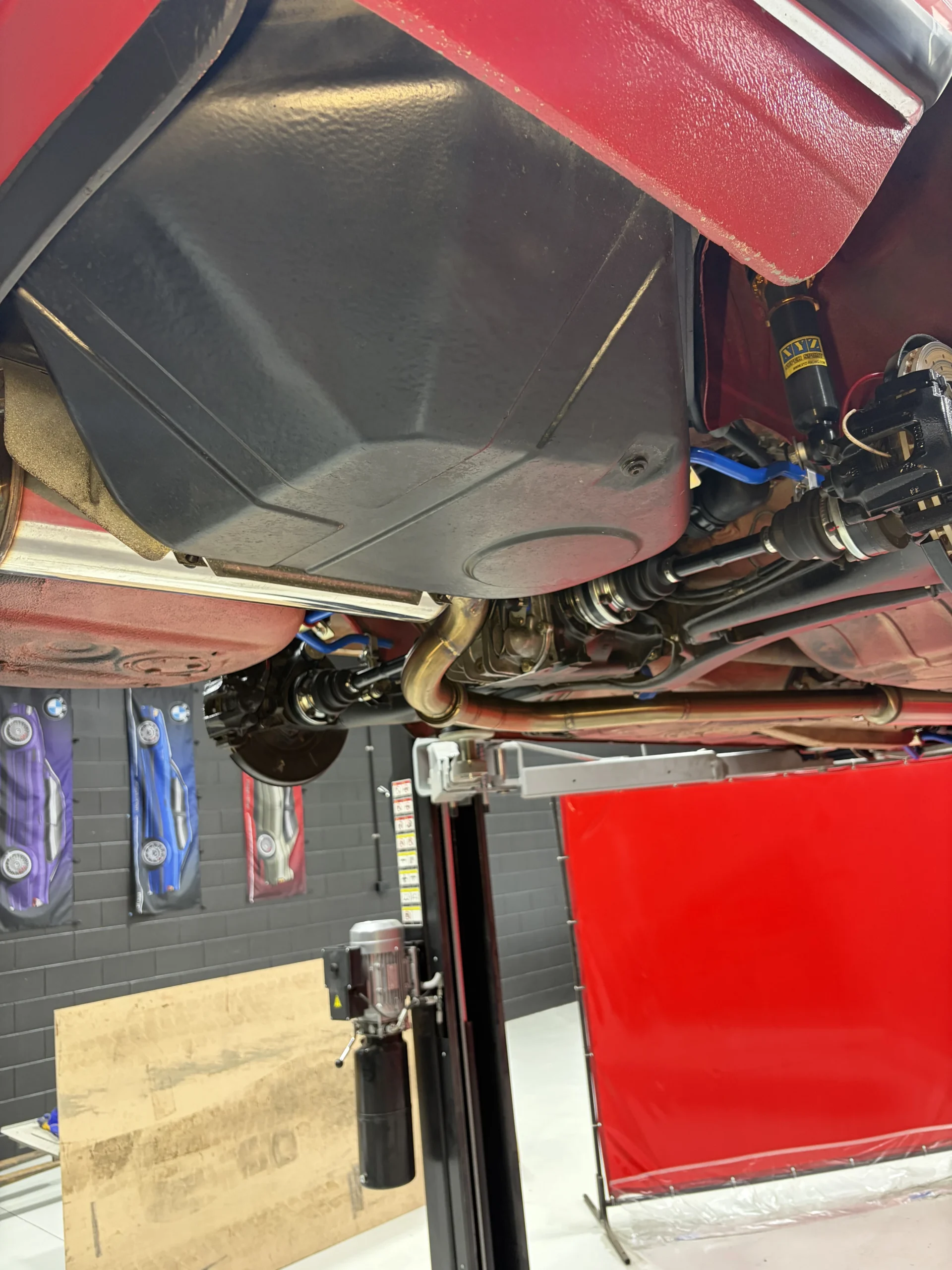

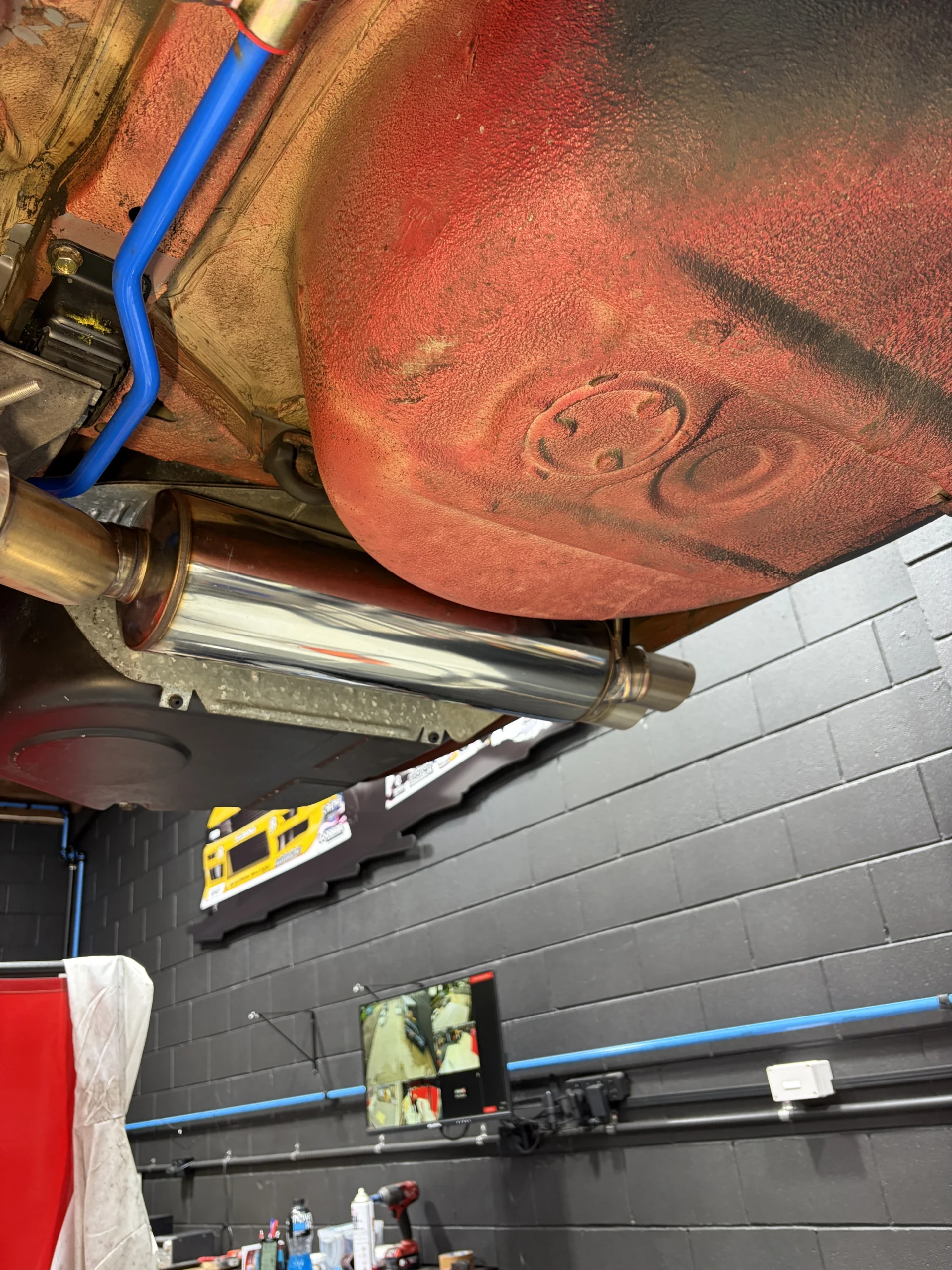

BMW E28 fuel tank, driveshaft and exhaust after dry ice blasting, clean and dry with factory finishes intact

Tank seams and driveshaft hardware visible again.

The white sheeting in these frames is not part of the car — it is drop protection over the wheels and the bay floor. On an assembled build the prep takes longer than the blasting: connectors taped, open lines covered, extraction positioned, everything below the working zone sheeted.

04

Gearbox, tunnel & exhaust

Cleaned assembled · brakes and lines in place

Before

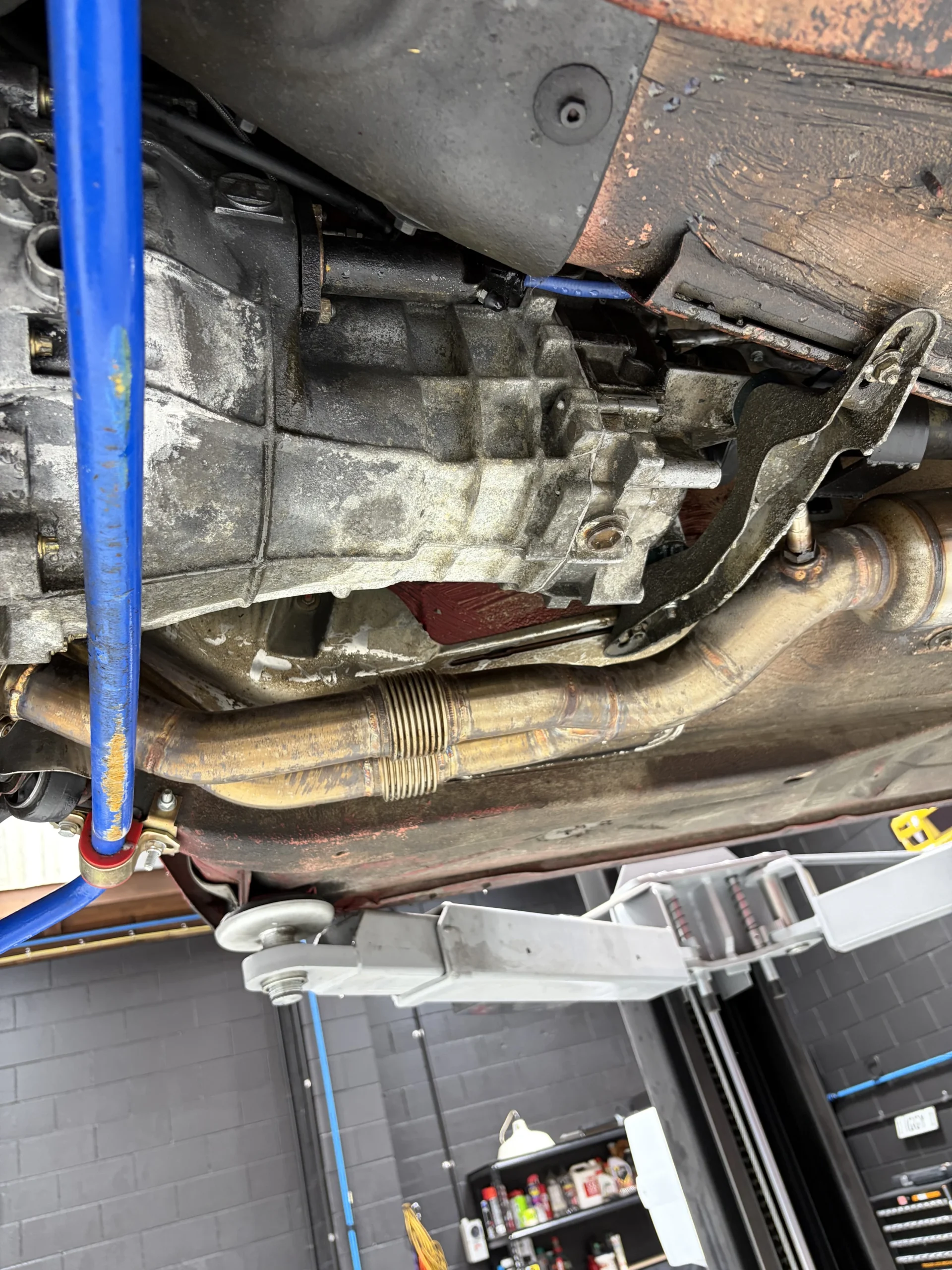

BMW E28 gearbox, tunnel and exhaust before dry ice cleaning, under road film and grime

Casing detail lost, exhaust and tunnel the same shade.

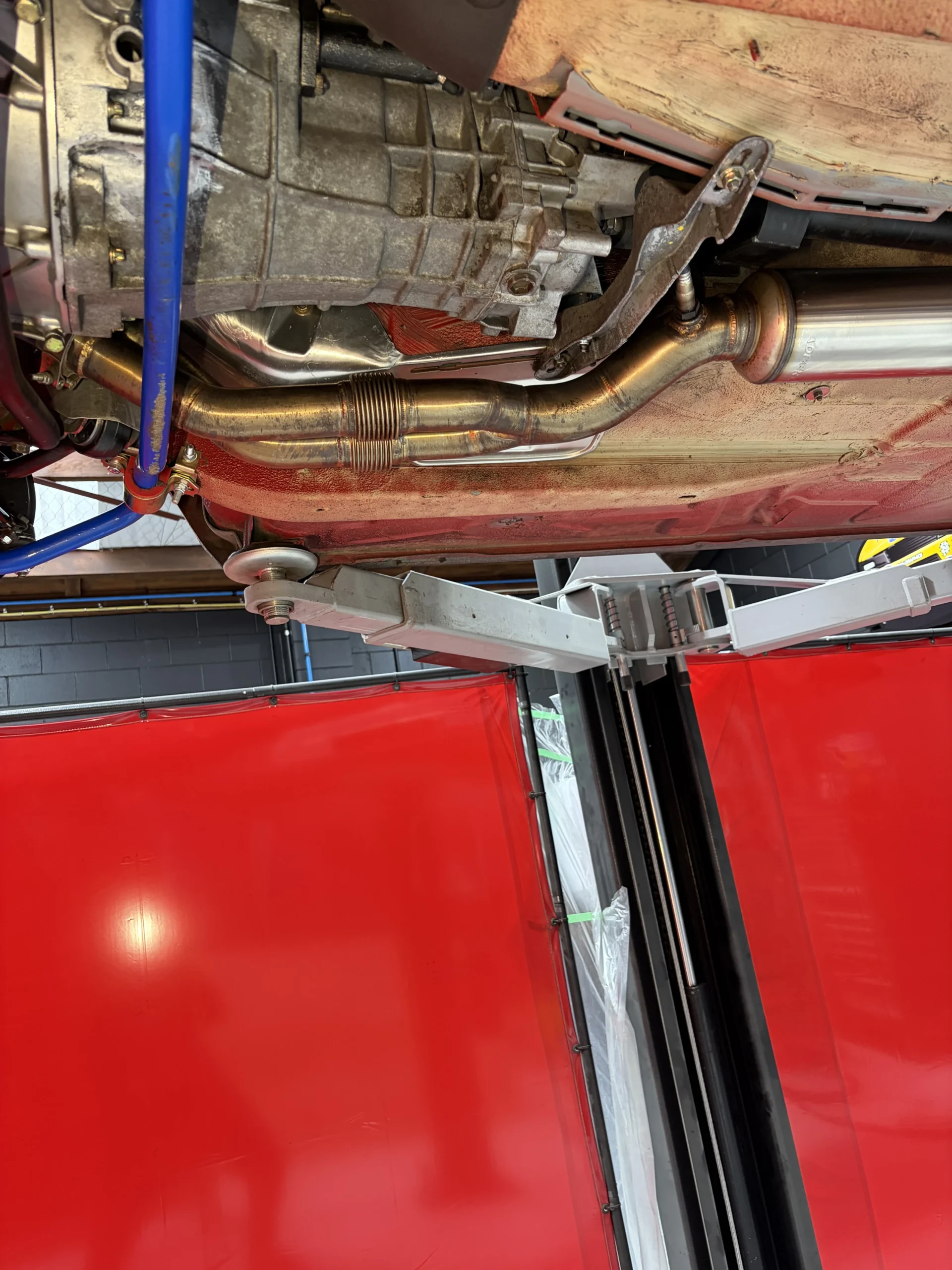

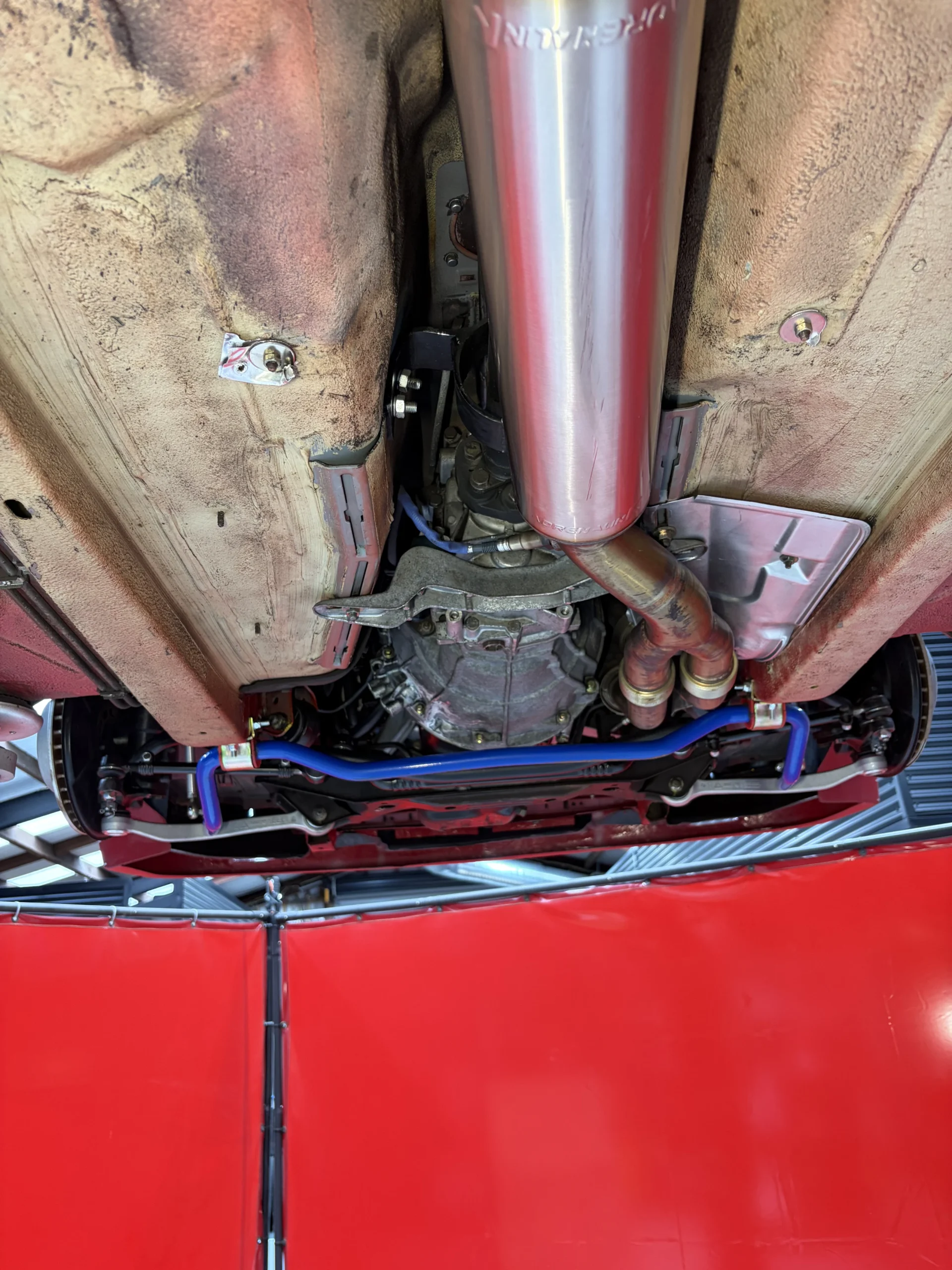

After

BMW E28 gearbox, tunnel and exhaust after dry ice blasting, clean and dry with factory finishes intact

Gearbox casting and pipework back to their own finishes.

On film

Watch it come off

One pass filmed on the hoist before we started, and two more with the lance running. Nothing sped up, nothing cut — this is what a bulk pass and a detail pass actually look like.

Before

Day one — the underbody, before the lance.

In progress

Bulk pass — the film lifting in real time.

What to watch for

The line the lance leaves behind it. Dry ice does not scrub — it shocks the contaminant layer loose and it falls. What you are watching is the boundary between decades of film and the surface underneath.

No water, no slurry, no runoff. The extractor takes the dust and the CO2 goes back to being air.

Filmed on the hoist — front floor and gearbox tunnel.

In progress

Detail pass — floor pan and exhaust run.

Why the second pass takes longest

The bulk pass clears the open floor quickly. What takes the hours is everything the wide nozzle cannot reach square-on — seams, subframe pockets, the back of the arms, around the exhaust hangers. That is the pass in this clip.

How it ran

Survey, bulk, detail, hand over

01

Survey & mask

Full photo and video baseline. Connectors, the standalone loom, open lines and anything with a seal get taped. Sheeting down, extraction positioned under the working zone.

02

Bulk pass

Wide nozzle, moderate pressure, working front to back across the floors. Lifts the loose road film and oil mist without loading the panel with energy it does not need.

03

Detail pass

Narrow nozzle into seams, subframe pockets, arch lips and around the exhaust hangers. This is where most of the hours go.

04

Inspect & hand over

Sweep the floor, walk the car with the owner, shoot the after set from the same marks as the before set. The car leaves dry and ready to go back on its wheels.

The outcome

Underneath,
finally matching

The underbody now reads the same as the bay above it — floors, subframes and drivetrain back to their own finishes, with the loom, the lines and the brakes untouched and completely dry.

"After restoring and driving my e28 for a year or two, the only thing left to do was clean the underside.

The workmanship and quality of the dry ice blasting was outstanding. The underside of the car had not looked this clean since it came from the factory some 40 years ago. This type of service really speaks to my OCD and the team at Cryoworks are the same, they treat the car like their own, and they are about as OCD as I am. They even detailed the car before presenting it back to me.

Very stoked with the outcome, a truly professional service and quality product. Would highly recommend to anyone wanting that non-abrasive clean. Worth every penny!"
Nathan M
BMW E28
